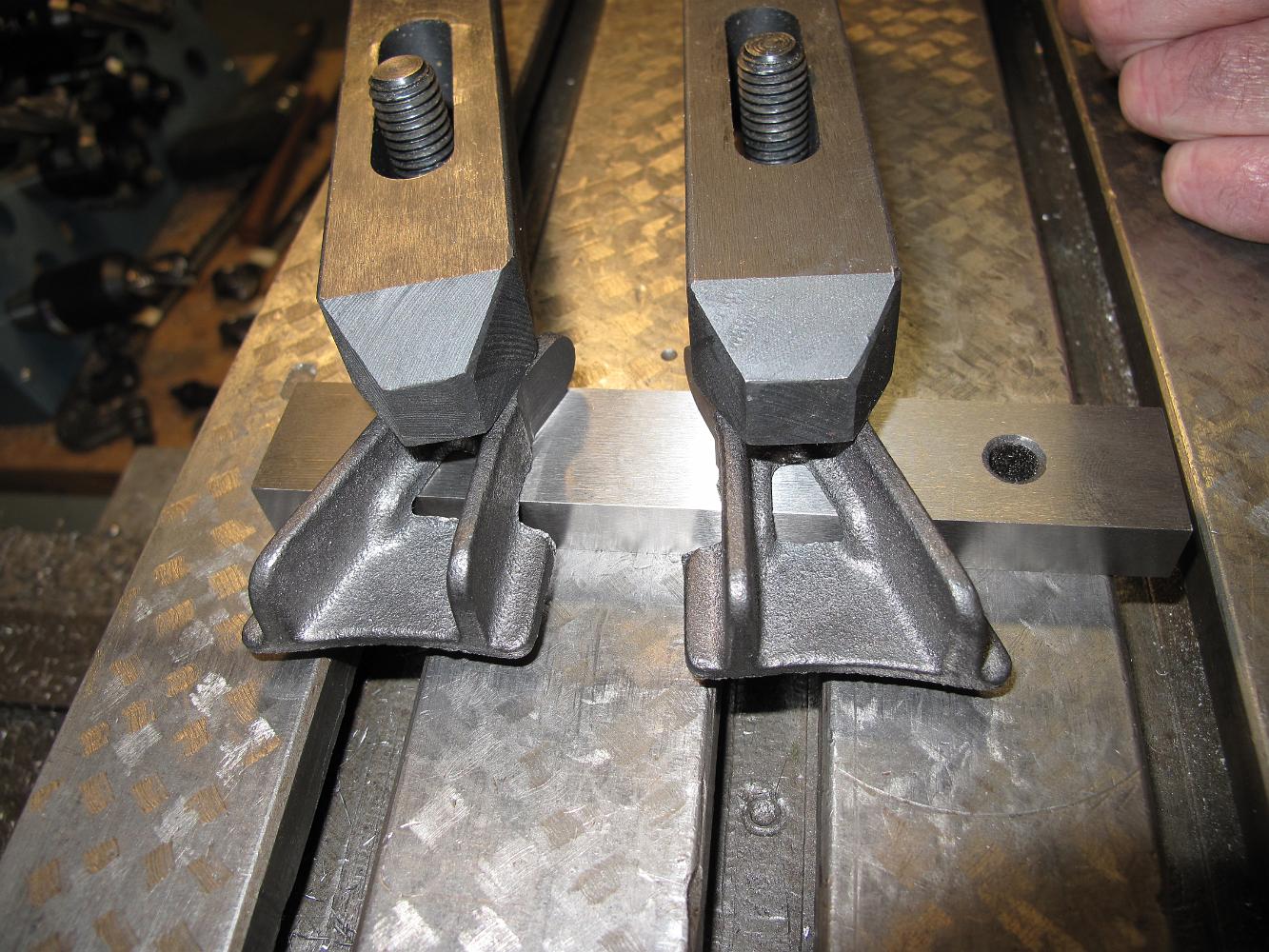

Now to drill the rivet holes. We lift the brackets off the table with a parallel and clamp away from where we have to drill.
