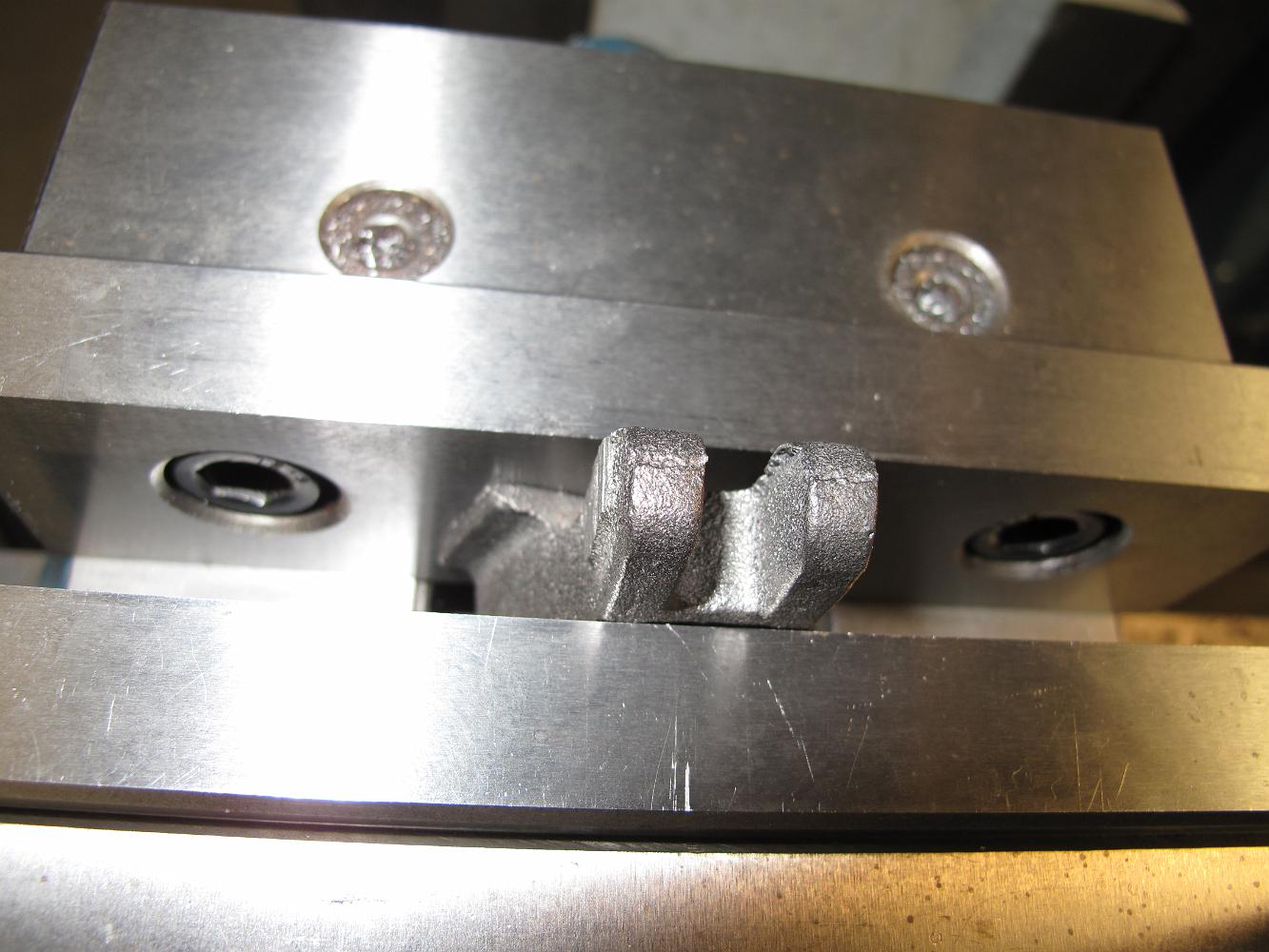

28-Mar-09 The smokebox front hinges are easier to clamp, just line up the straight side with a square to the vice.
