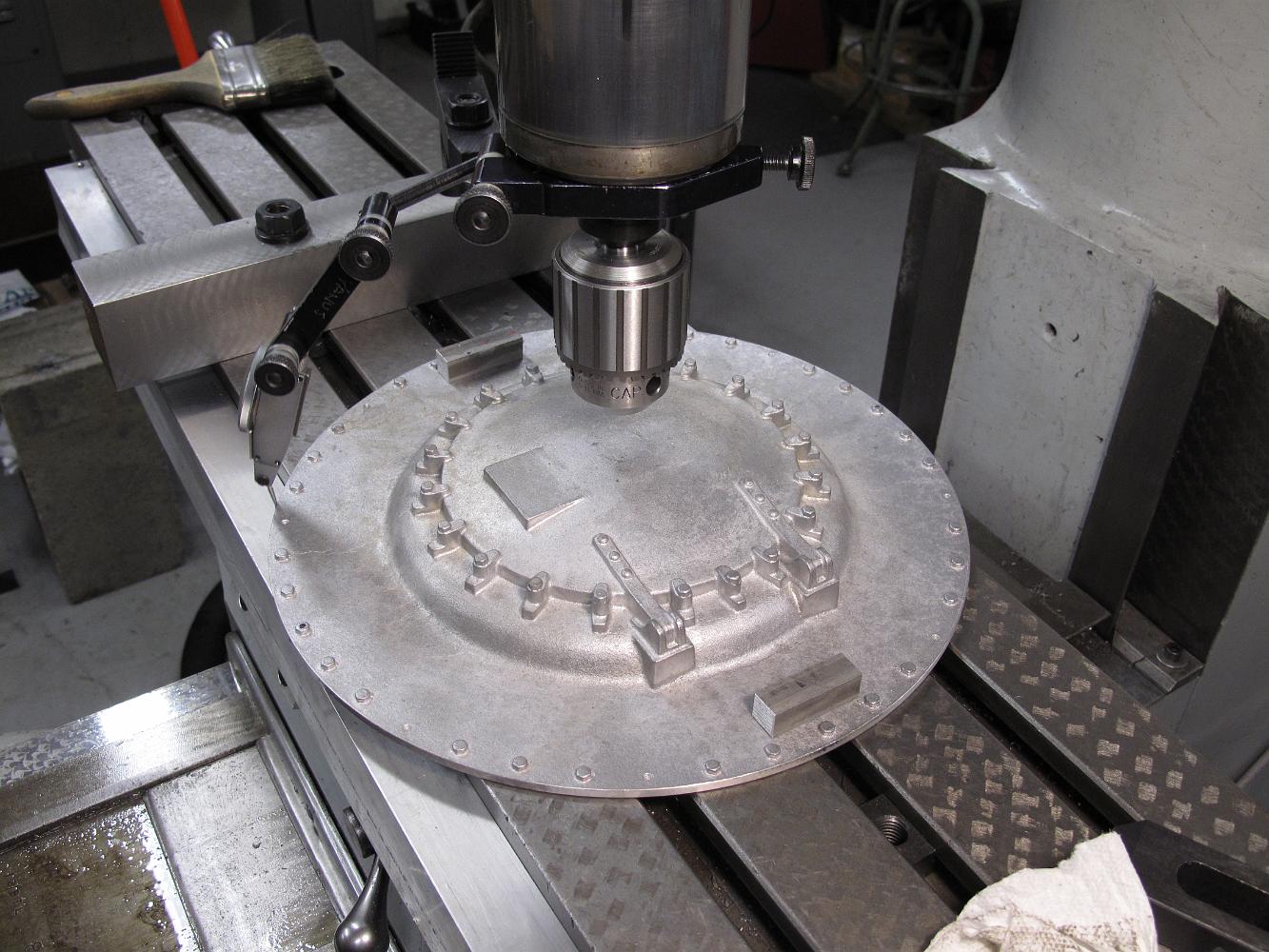

11-Mar-09 With the back of the smokebox cover marchined, it is time to drill some holes. Setting the cover on the table, we indicate the outside to center it. We tried this without clamping at first so we could swing the whole diameter uninterrupted, but we couldn't put the clamps on without moving it. This cover is also at the limits of my table travel, we had to move the Ram out to reach both front and back holes.
