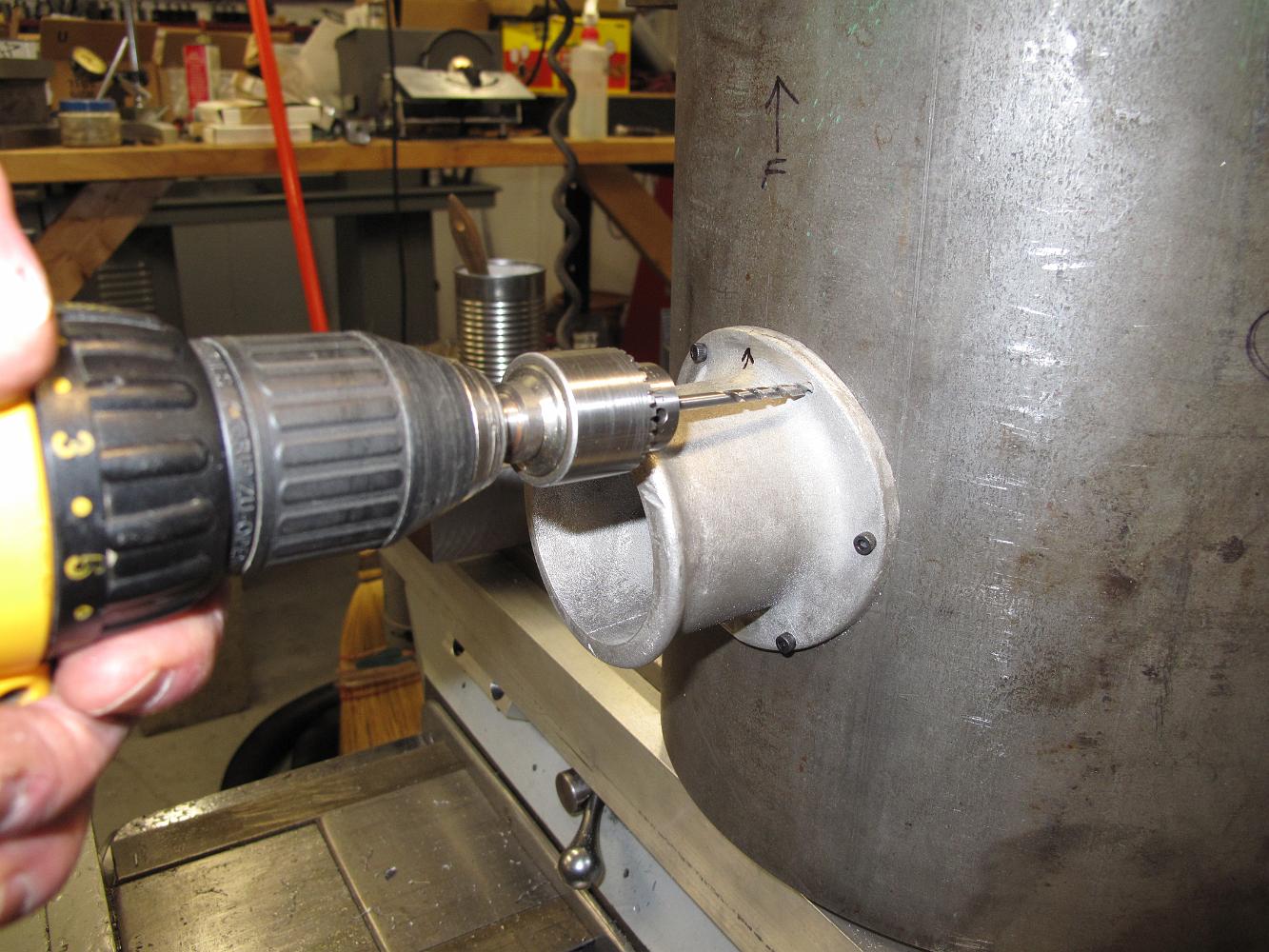

Another Saturday of bad weather means more time in the shop and less out at the track. Good for shop time, bad for getting the track ready for the April start of season run. Using the eyeball "that'll do" method and a chuck-in-a-chuck to get in close to the smokestack with the small drills, we match drill the remaining four holes throught the stack and into the shell. It was fun trying to match the compound angles of the holes.
