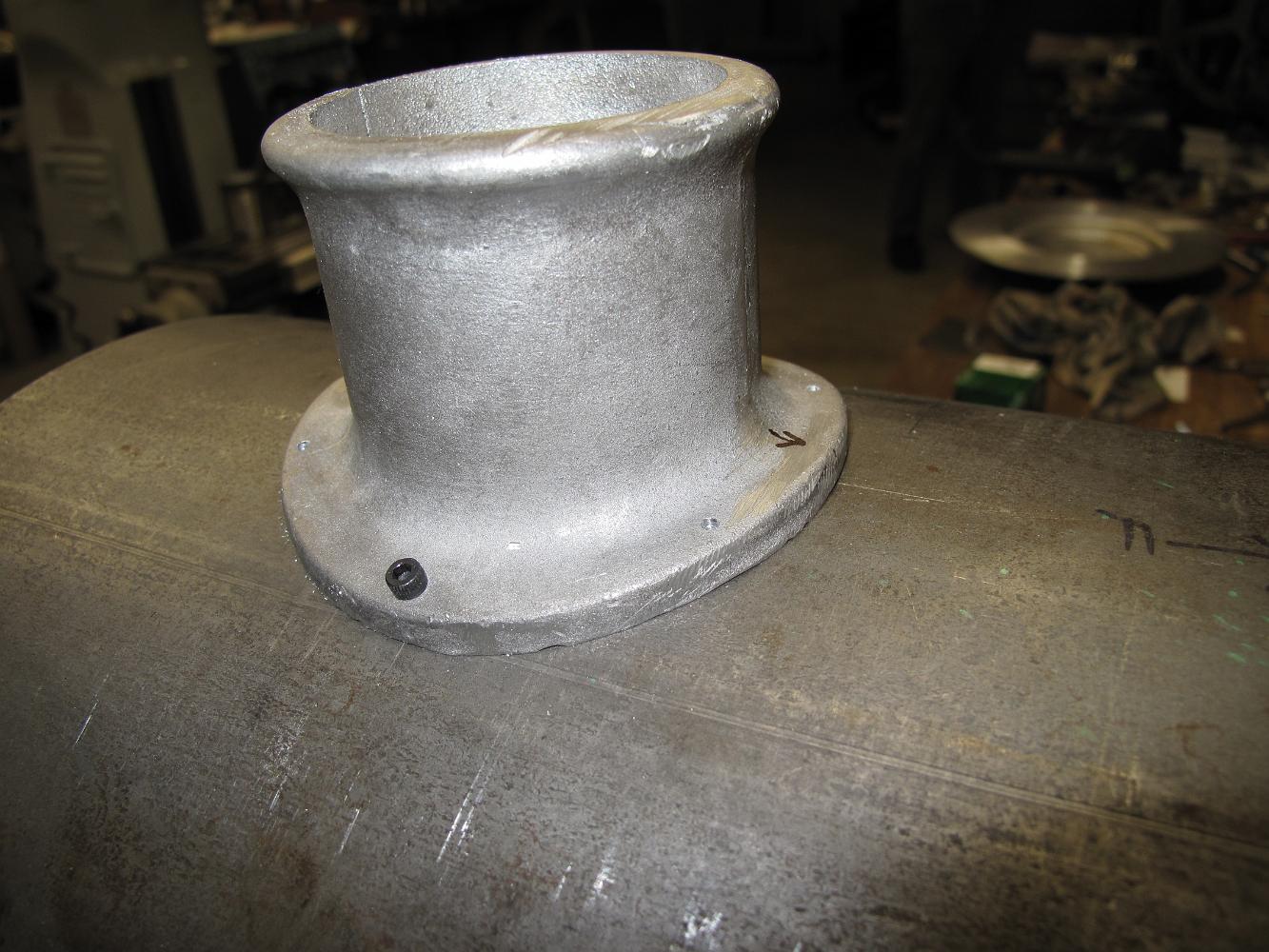

We drill just the two holes perpendicular to the smokebox front at first. Our holes are okay, but the cumulative errors between the rotary head, the angle of the tilt and the not quite on center part cause us to adjust the holes with a small round rat-tail file.
