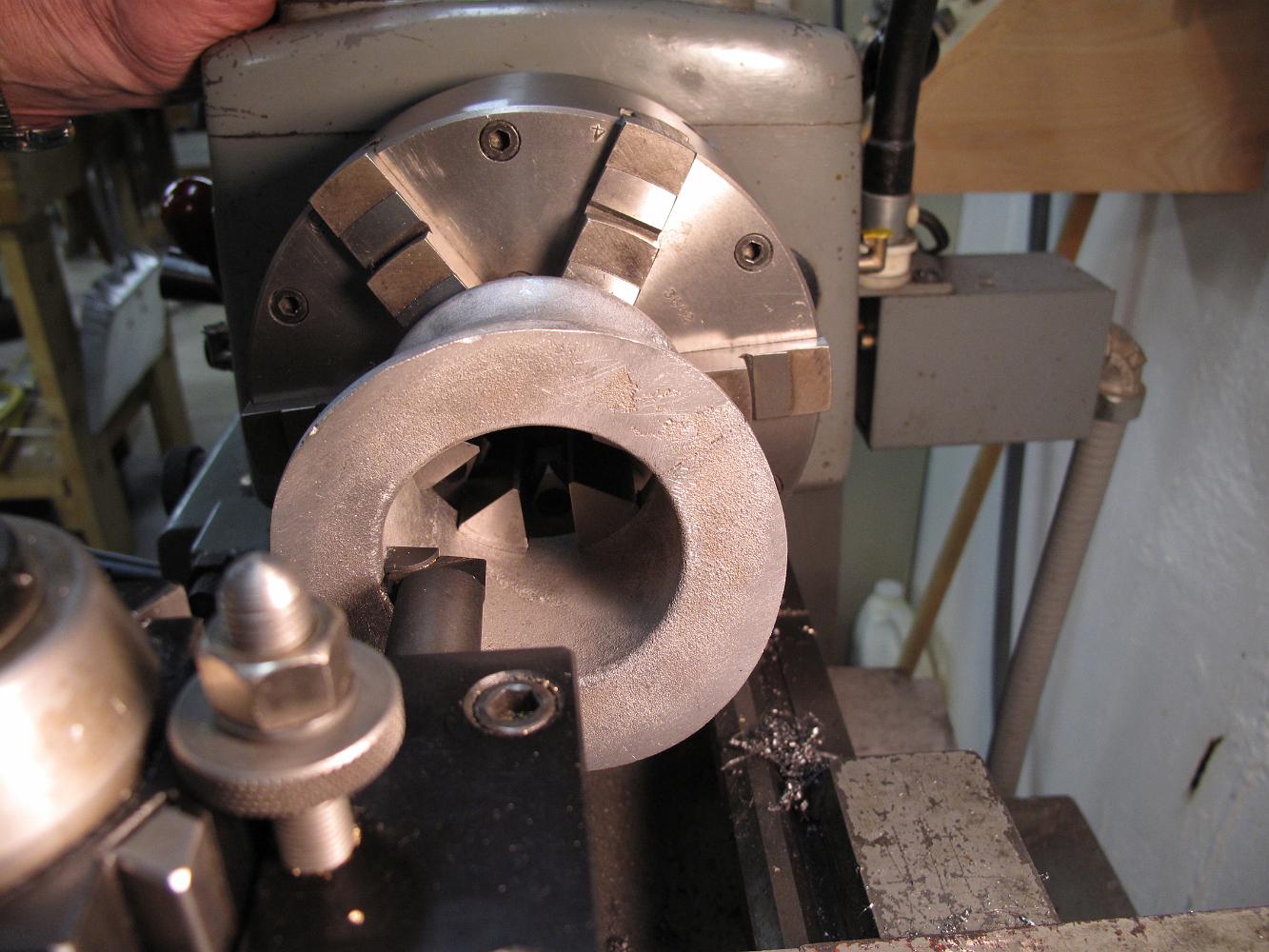

25-Feb-09 With the six-jaw holding the end of the smokestack and a boring bar in the toolholder, we turn the recess for the petticoat per the print.
