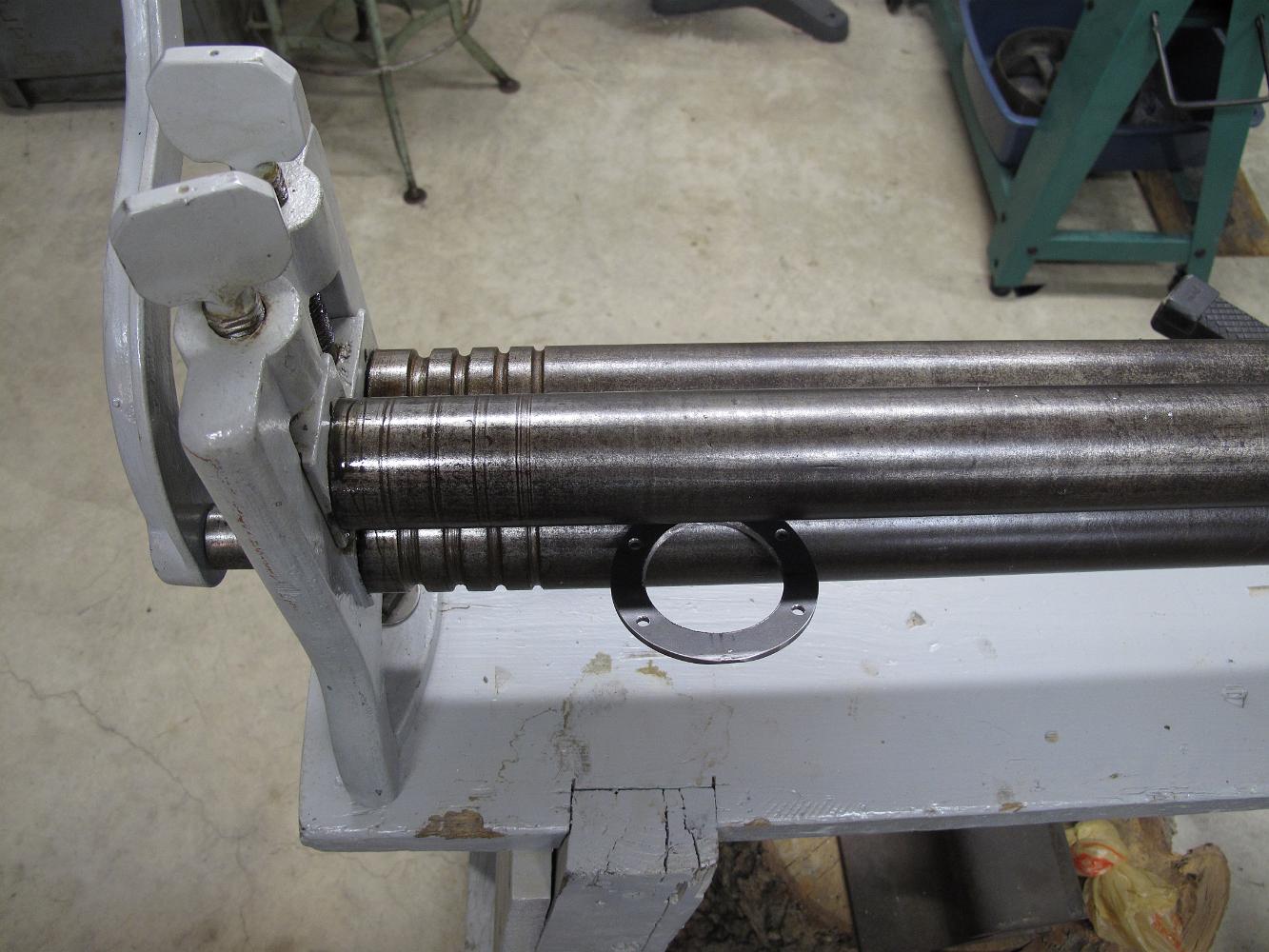

We used my antique roller to roll the casing and casing flanges. These are 2" rollers so we could not roll the outside casing too small!
