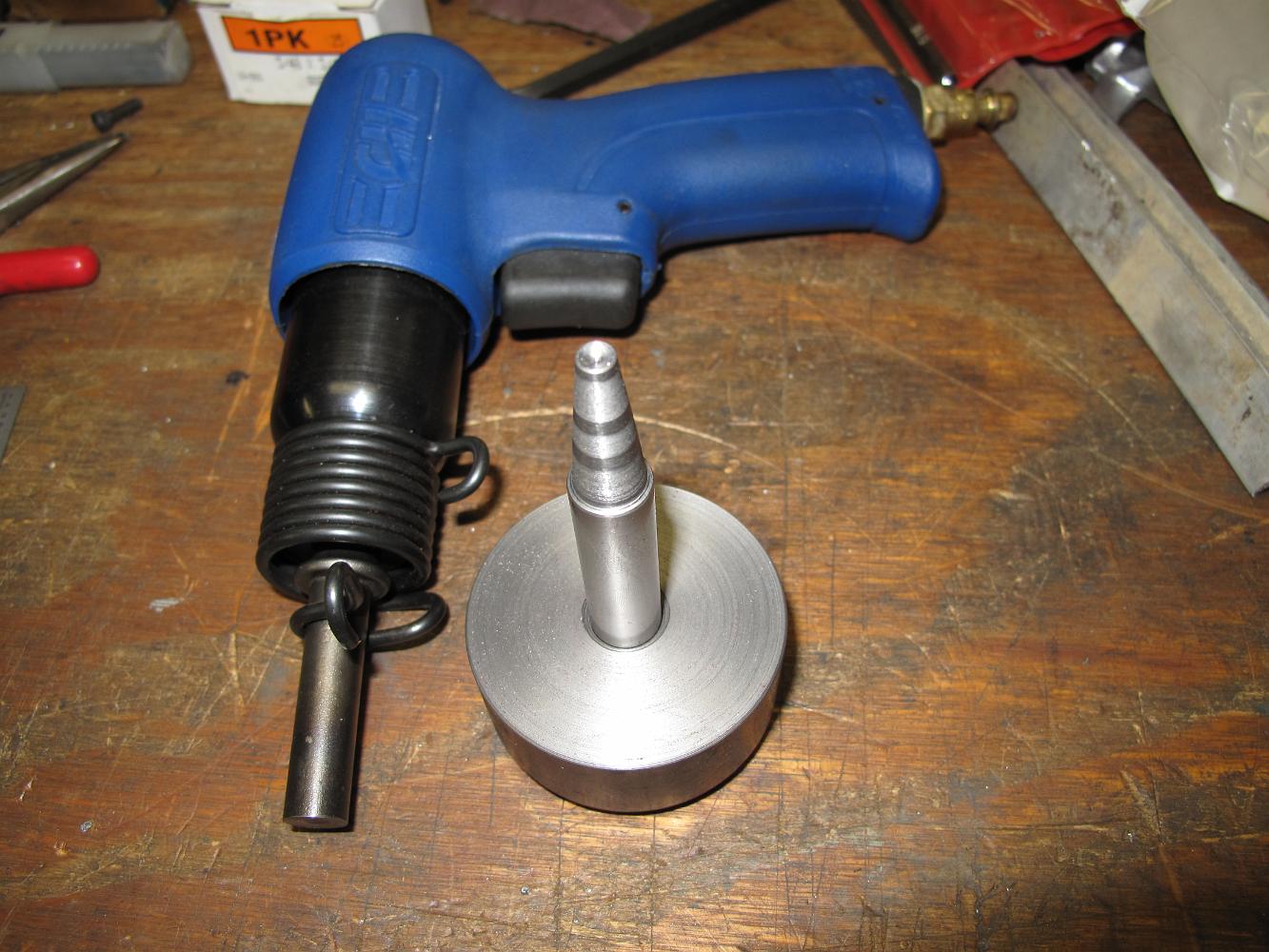

The finished buck and air hammer rivet set. I would recommend you get a 'palm nailer' instead of the gun-style hammer. Holding the gun is hard on the wrist after a bit. We heated and tempered the buck after this picture was taken, this will help it keep the correct head profile.
