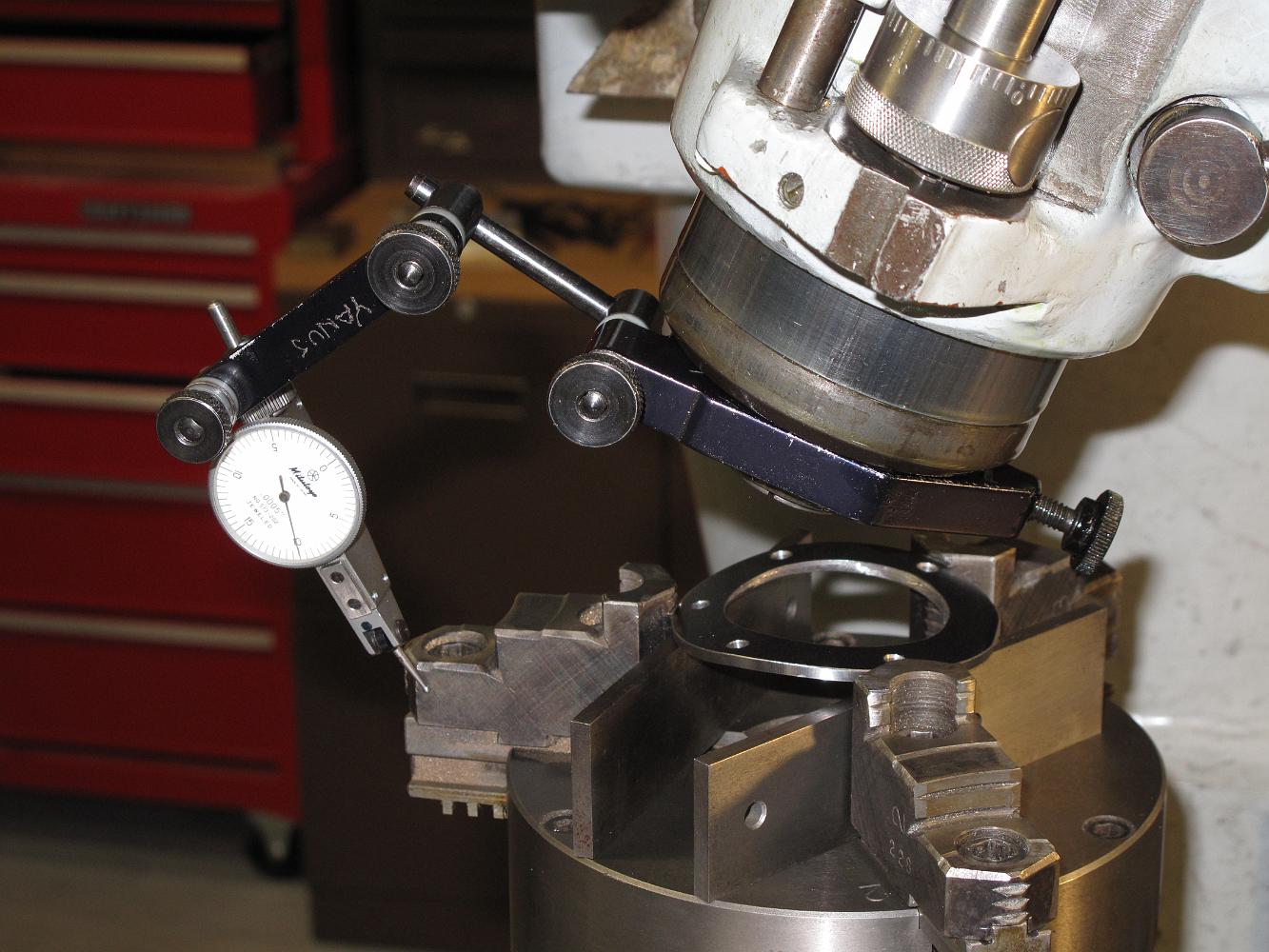

The chuck is clamped in the vice. We want the middle of the flange (left-right when the finished part is mounted on the smokebox) to be in line with the front to back motion of the table. With the part in the correct orientation and supported by parallels, we indicate the one jaw and rotate the chuck around until we can move the table l-r without any change in reading.
