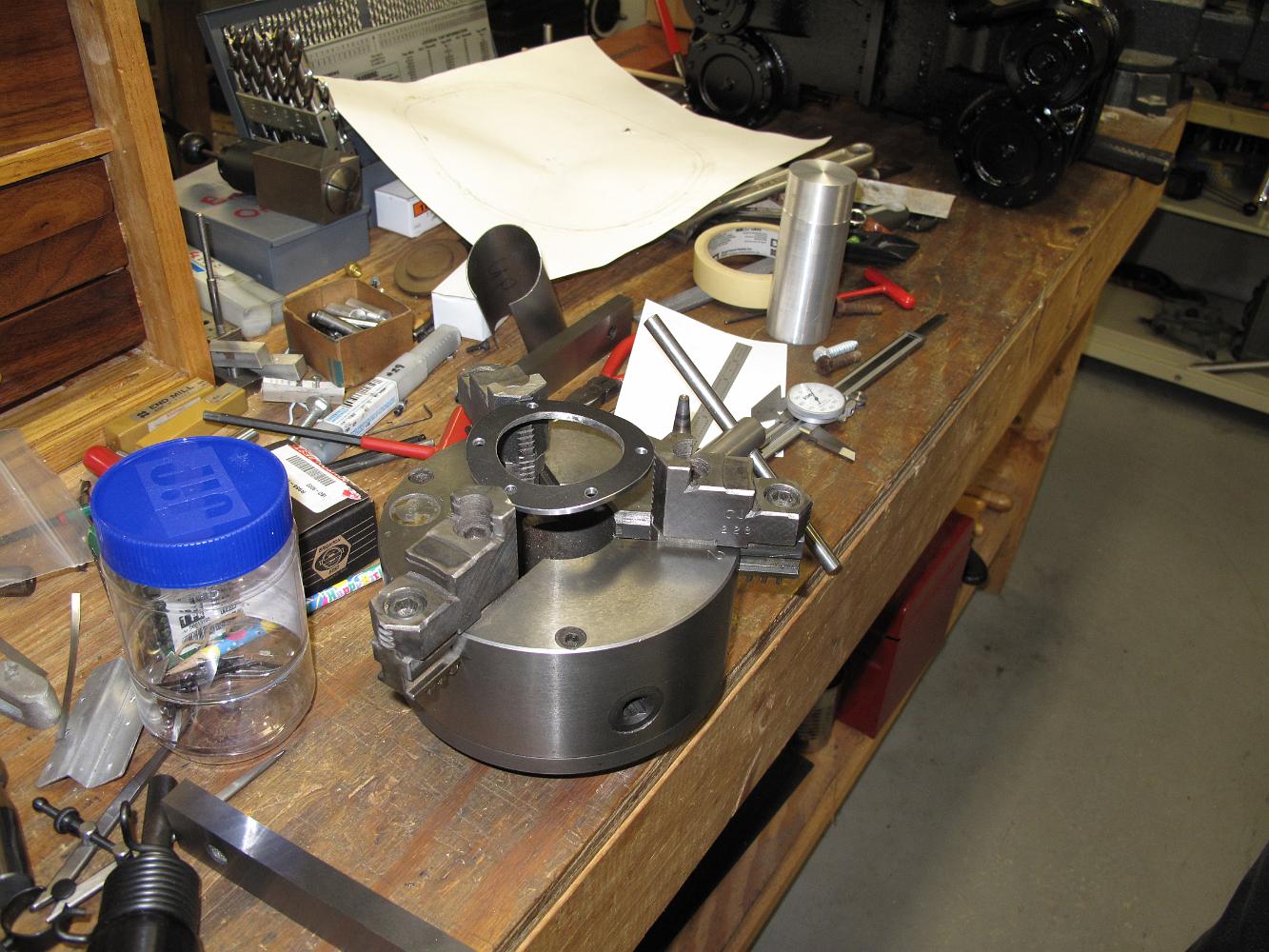

We decide to use the 3-jaw chuck. It has tall enough jaws to allow for the 1" clearance the boring head will need for the 23 degree angle tilt. We will clamp the chuck in the table vice.
