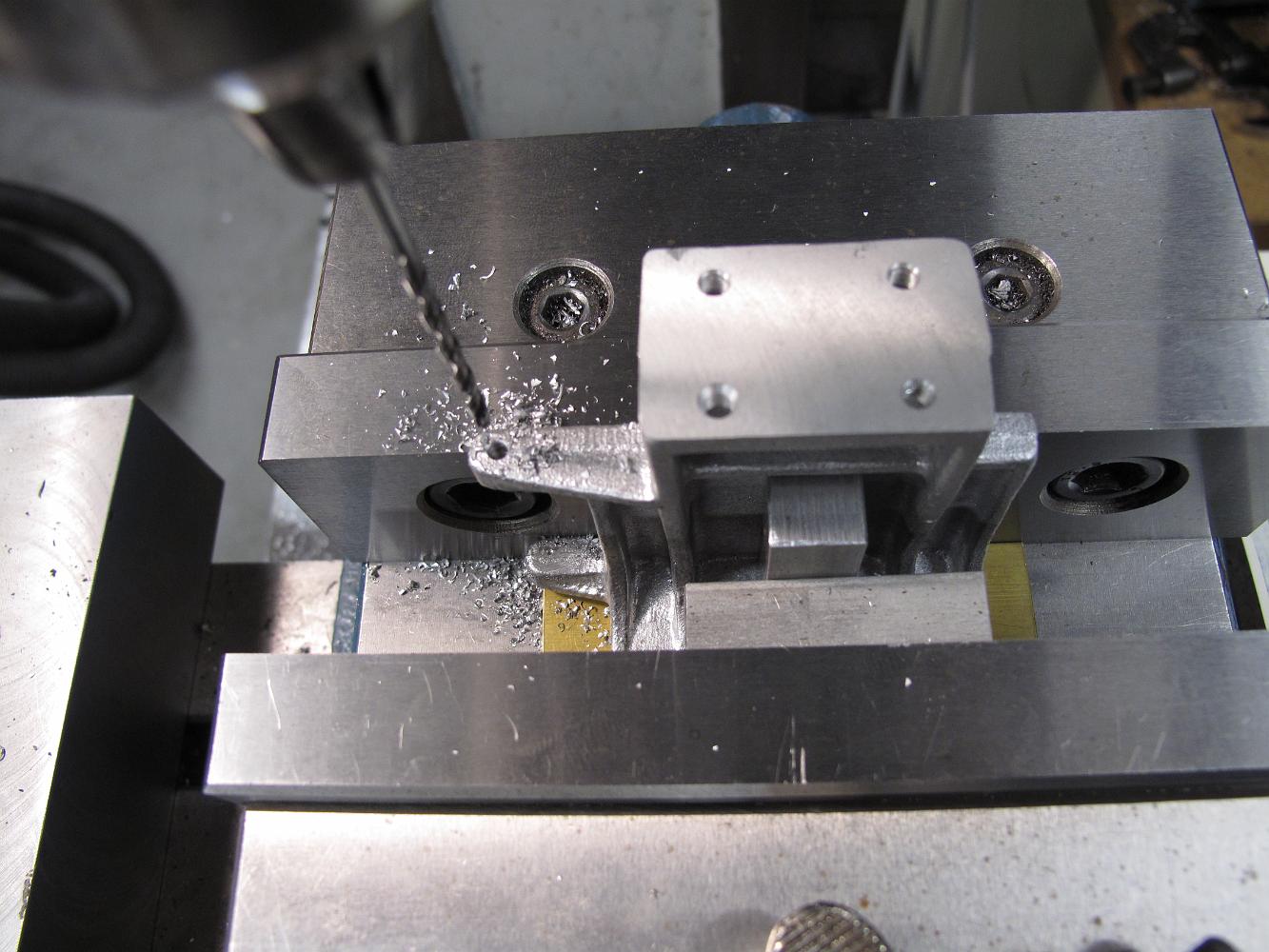

The smokebox section is the start of several sections with a lot of little things to do. Here Bill is drilling the handrail for the headlight bracket. I still have to get the brass rod and thread both ends to put in the holes.
