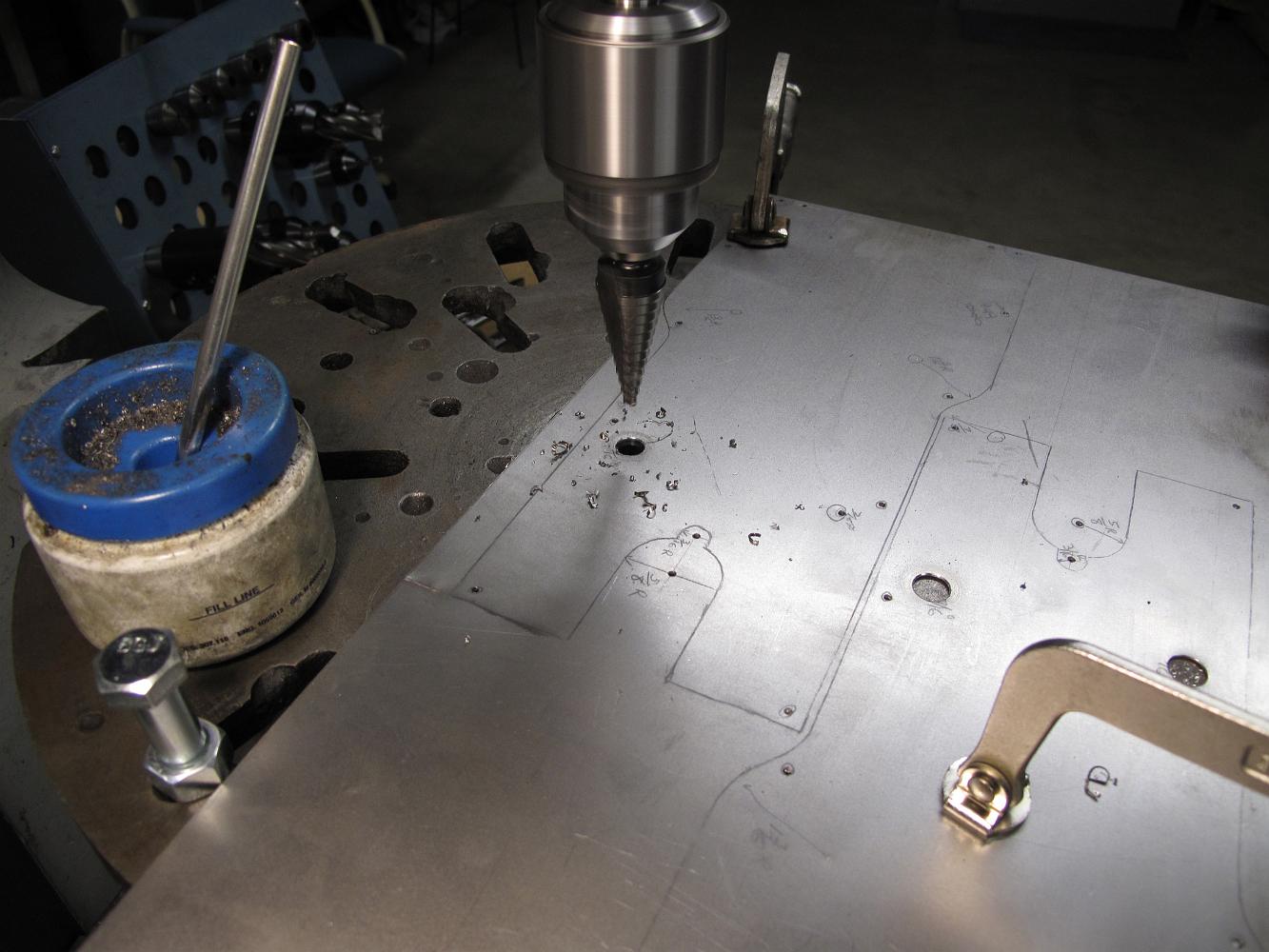

3-June-09 Using a step drill bit to cut the holes in the cylinder jacketing. Each hole was piloted before using the drill, the advantage of this style is it does not 'grab' the sheet metal when breaking through to the other side.
