ExhibitPlus ValveMotion26Nov08 007

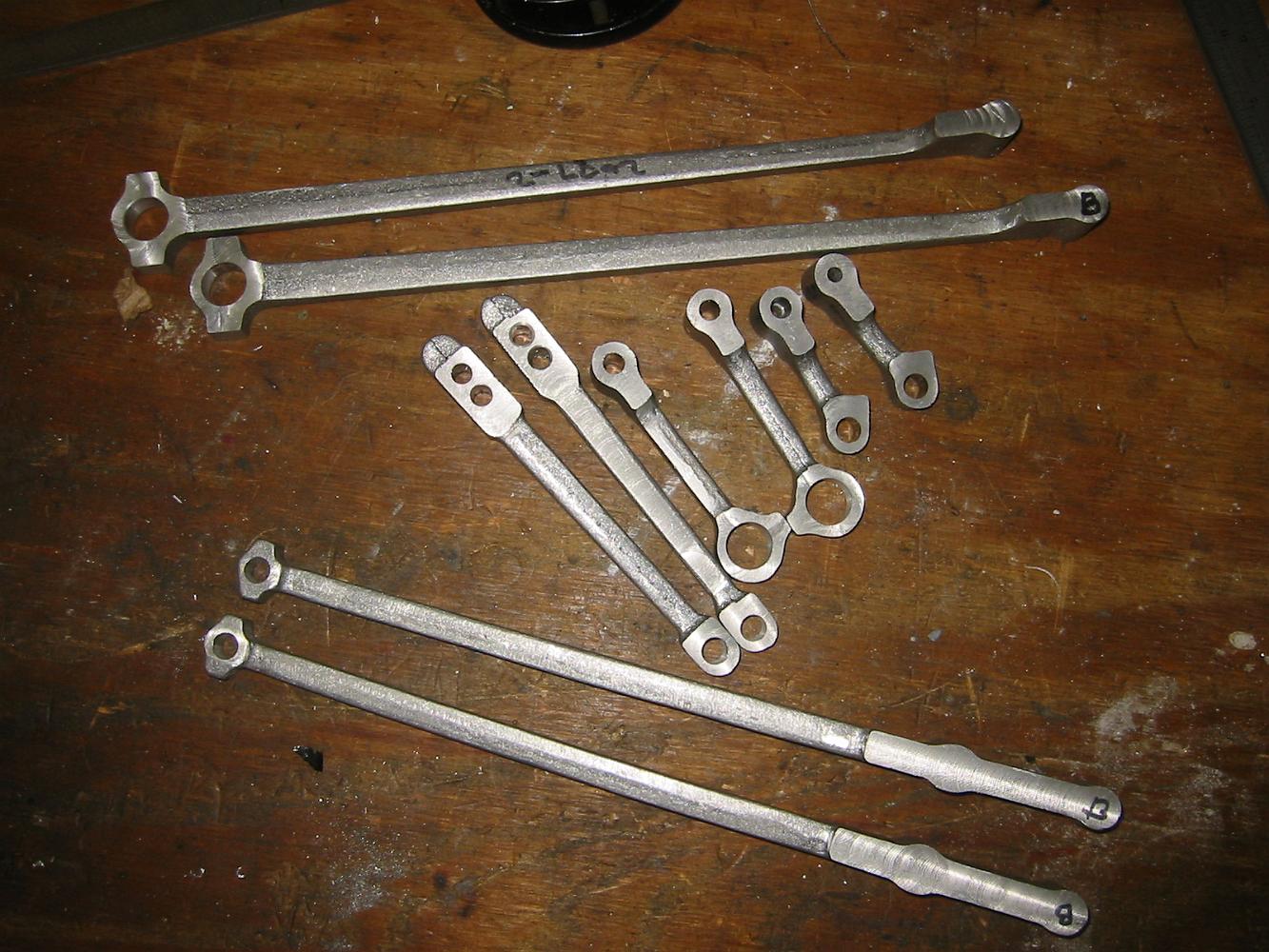

28-Nov-08 At the end of the night, most of the rods have been drilled and bored. Next to drill the Radius Rod, Eccentric Rod and cut the slots and put the bearings in.
