ExhibitPlus ValveGear10Dec08 004

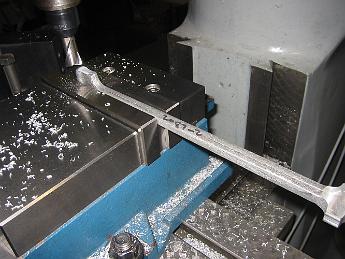

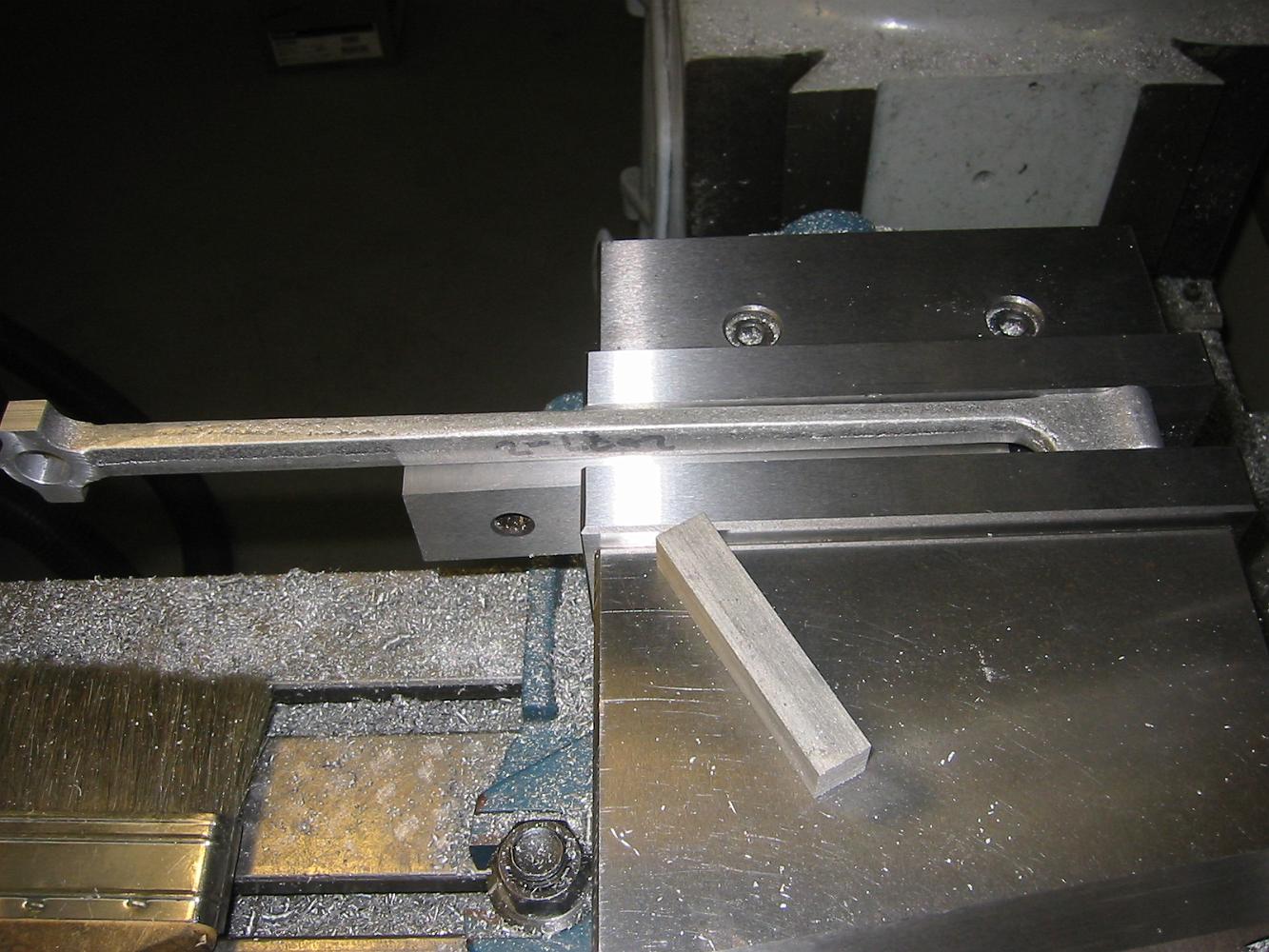

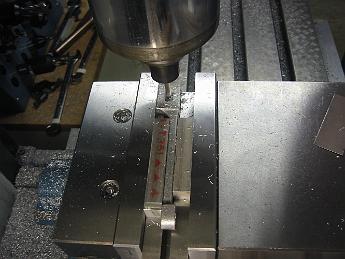

We had some discussions on how to hold the Eccentric Rod to mill the slot. In the end we decided to just clamp it in the vise and mill the middle away. The risk of this setup is the vise might put force on the tiny amount of material not machined away, causing the machined part to bend or have taper when done.
