ExhibitPlus ValveGear10Dec08 001

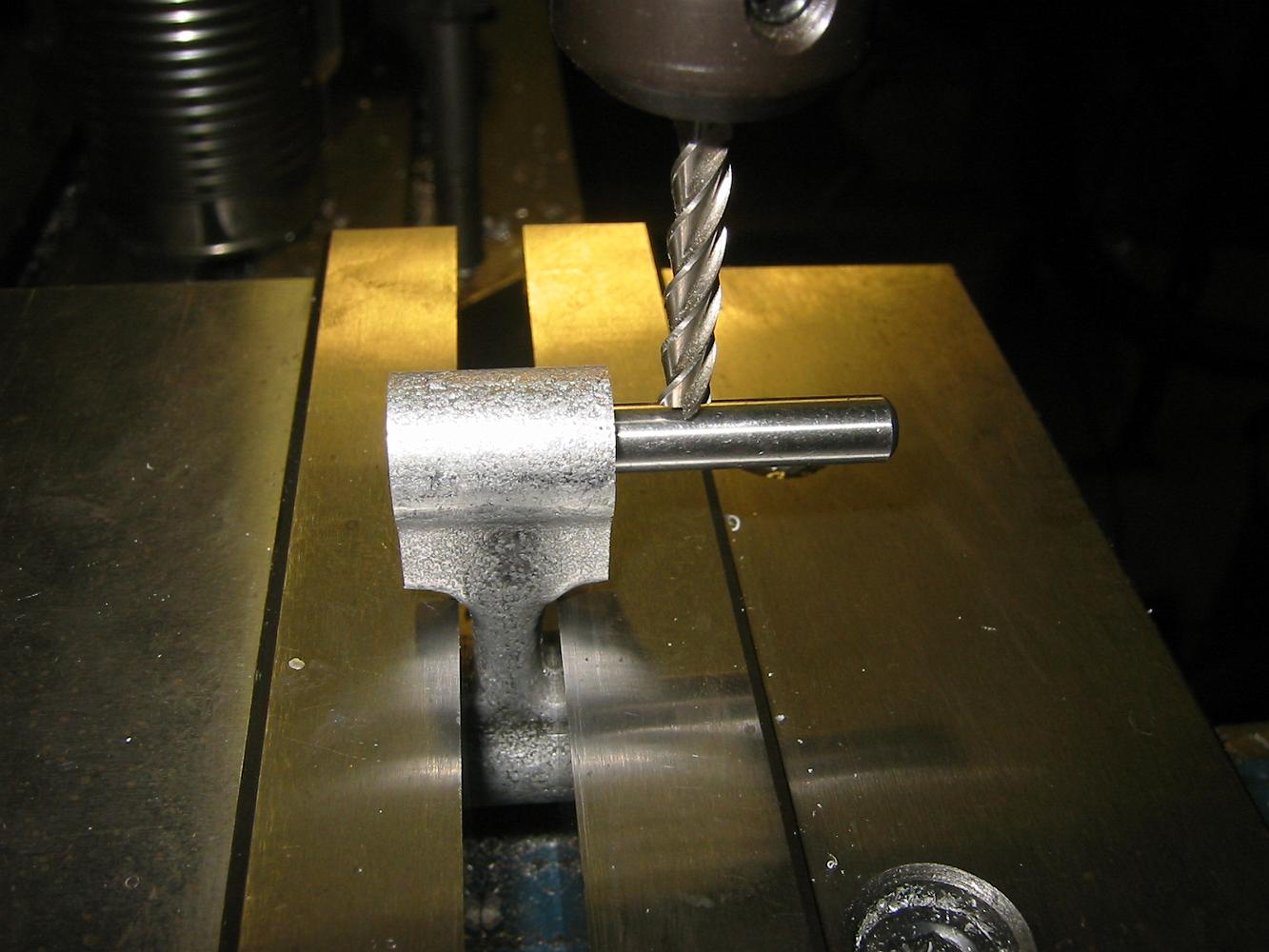

10-Dec-08 time to cut some slots. The lifting link is short enought to hold in the vise jaws. A quick bump of the cutter a close fitting pin allows us to get a reference dimension to set the slot cut depth.
