ExhibitPlus TumblingShaftLever12Nov08 004

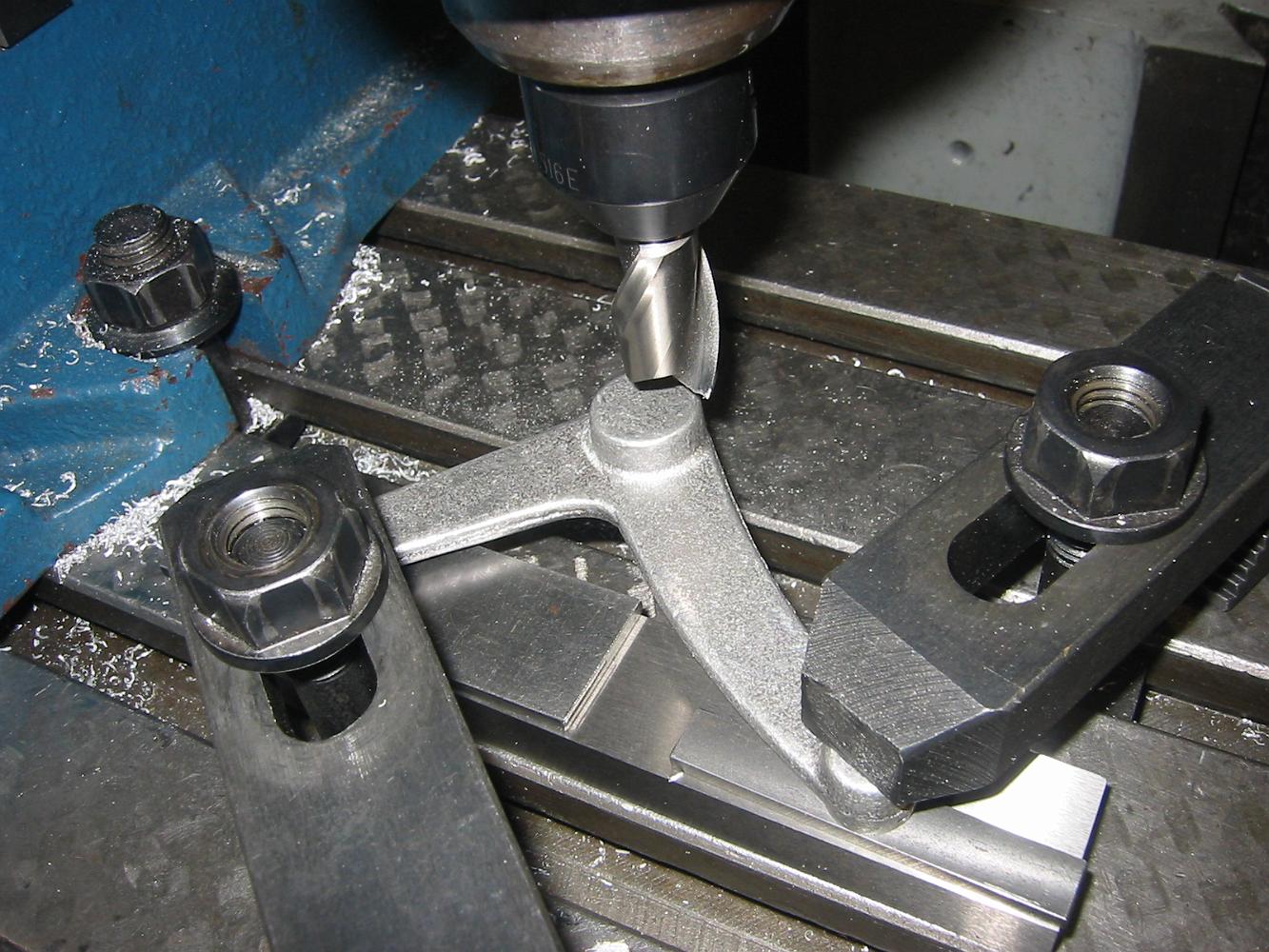

With the machined ends down and under the clamps, we take light cuts on the unsupported end.
