ExhibitPlus TumblingShaftLever12Nov08 002

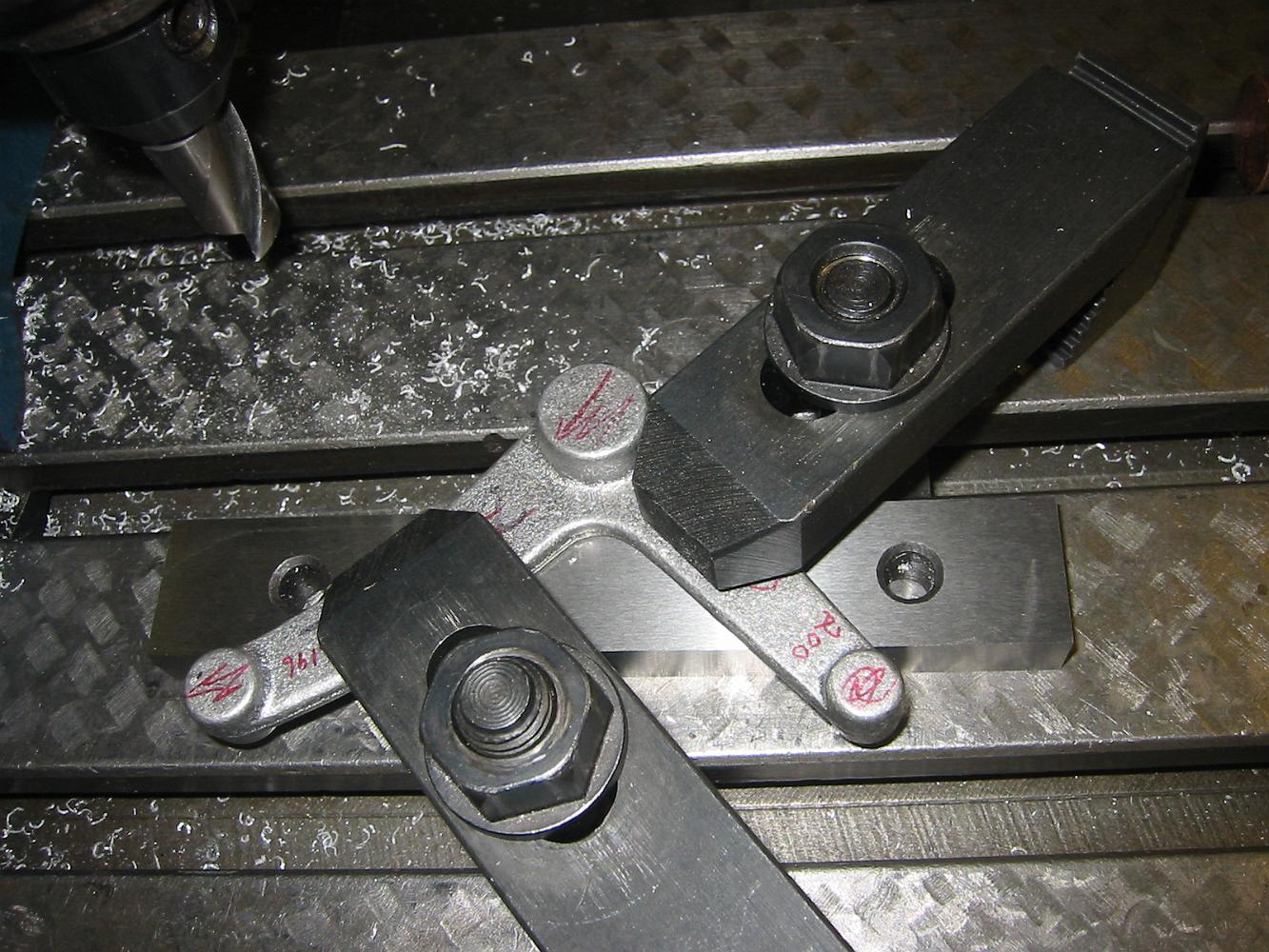

Machining the lever for the engineers side. The problem with this clamping setup is that any twist or differences in height between the two legs results in us cutting the ends to the wrong height, the part unbends (moves) when the clamps are removed.
