ExhibitPlus TumblingShaftFixtureFabrication24Jan09 005

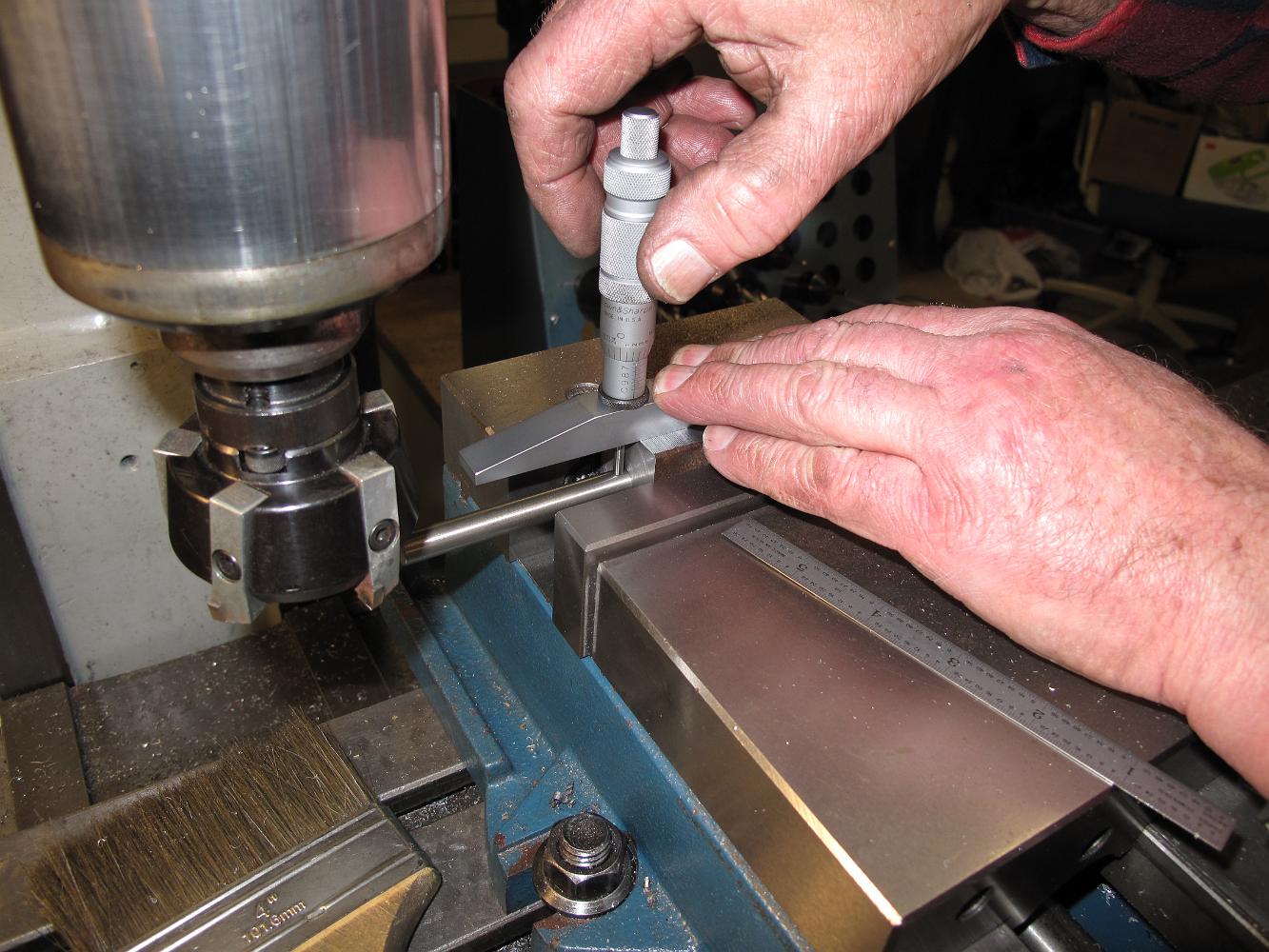

Using a depth mike to measure the depth of the block relative to the hole. We do this on both sides to make sure the machined surface is parallel to the reamed hole.
