ExhibitPlus TumblingShaftFixtureFabrication24Jan09 004

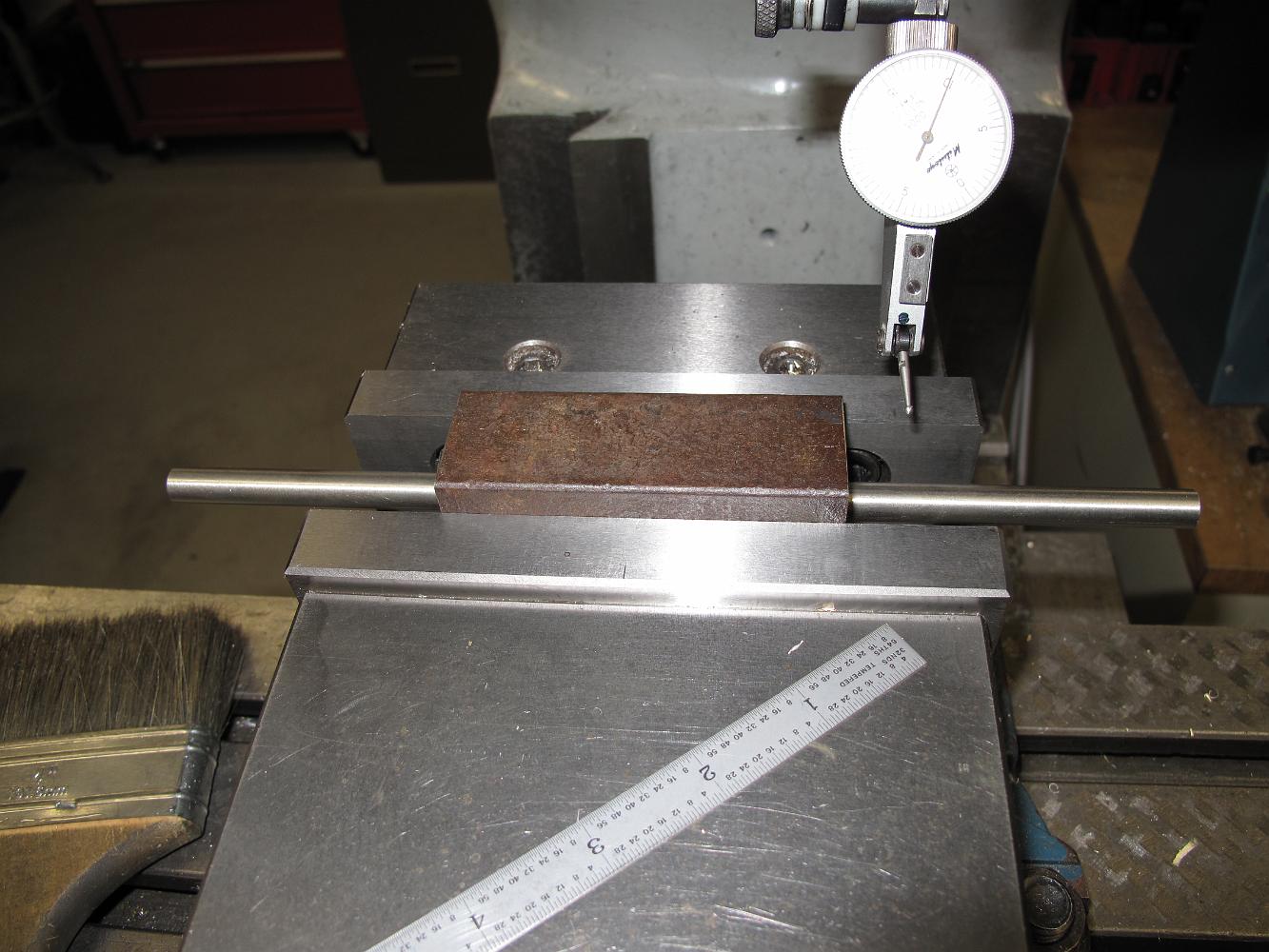

Using an indicator to roughly make the hole level with the table.
