ExhibitPlus TumblingShaftFixtureFabrication24Jan09 003

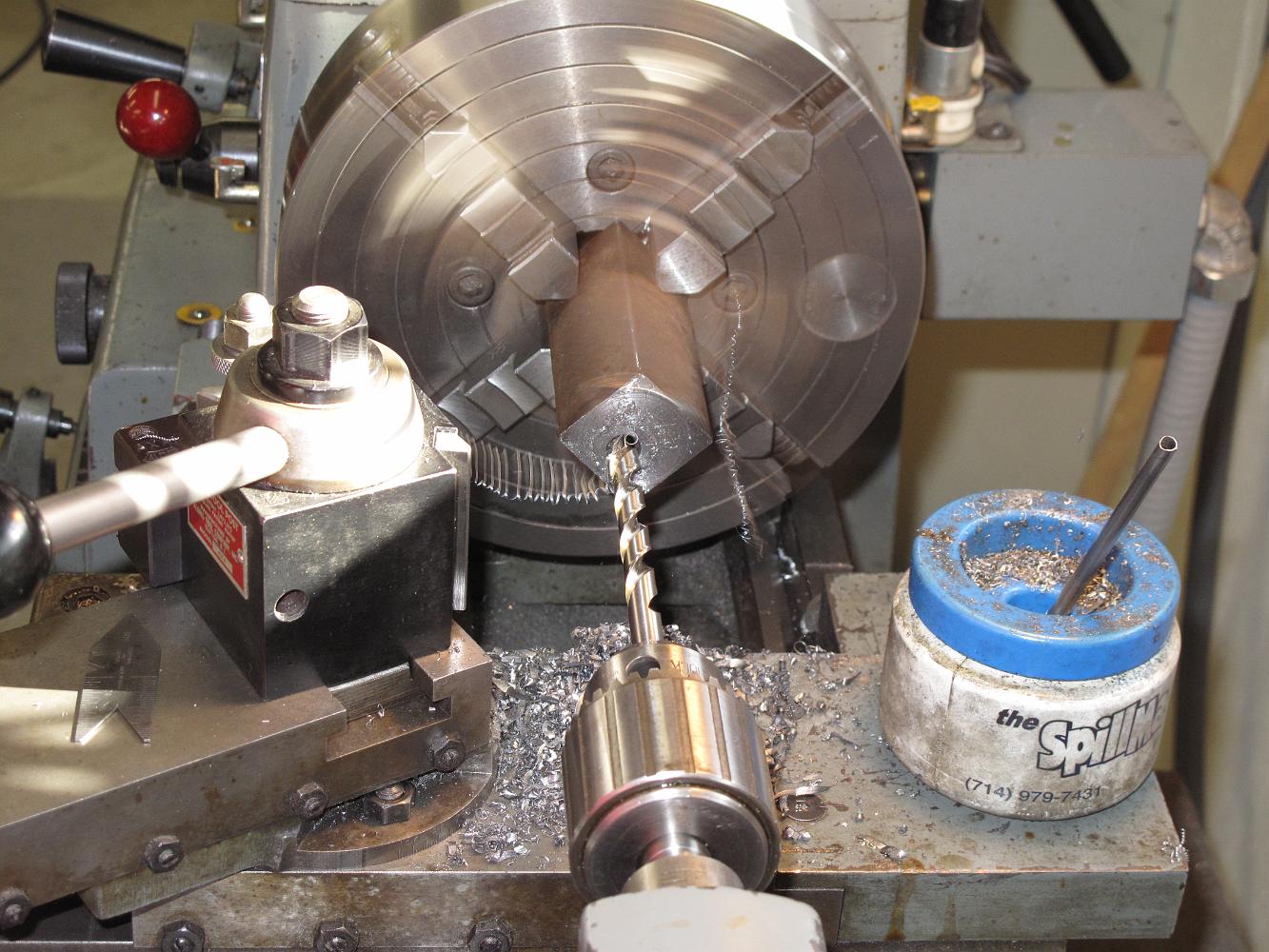

Drilling the pilot hole, then we will enlarge the holes and ream to a finish through the block. Deep-drilling a hole like this will make you wish for a lever-action tailstock.
