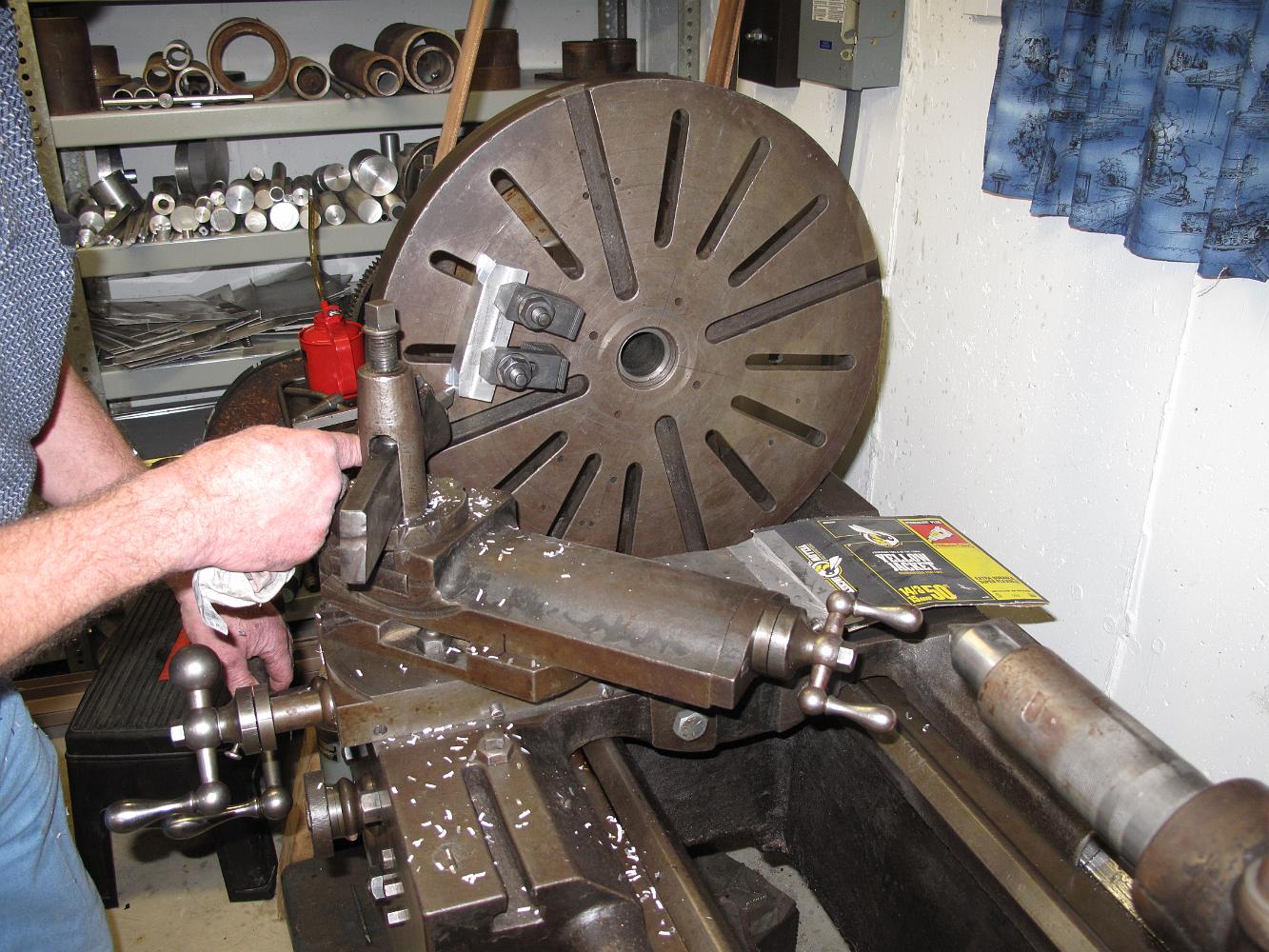

Bill keeps one hand on the carriage crank and the other on the tool holder keeping a toolbit shim from rattling out during the interrupted cut.
