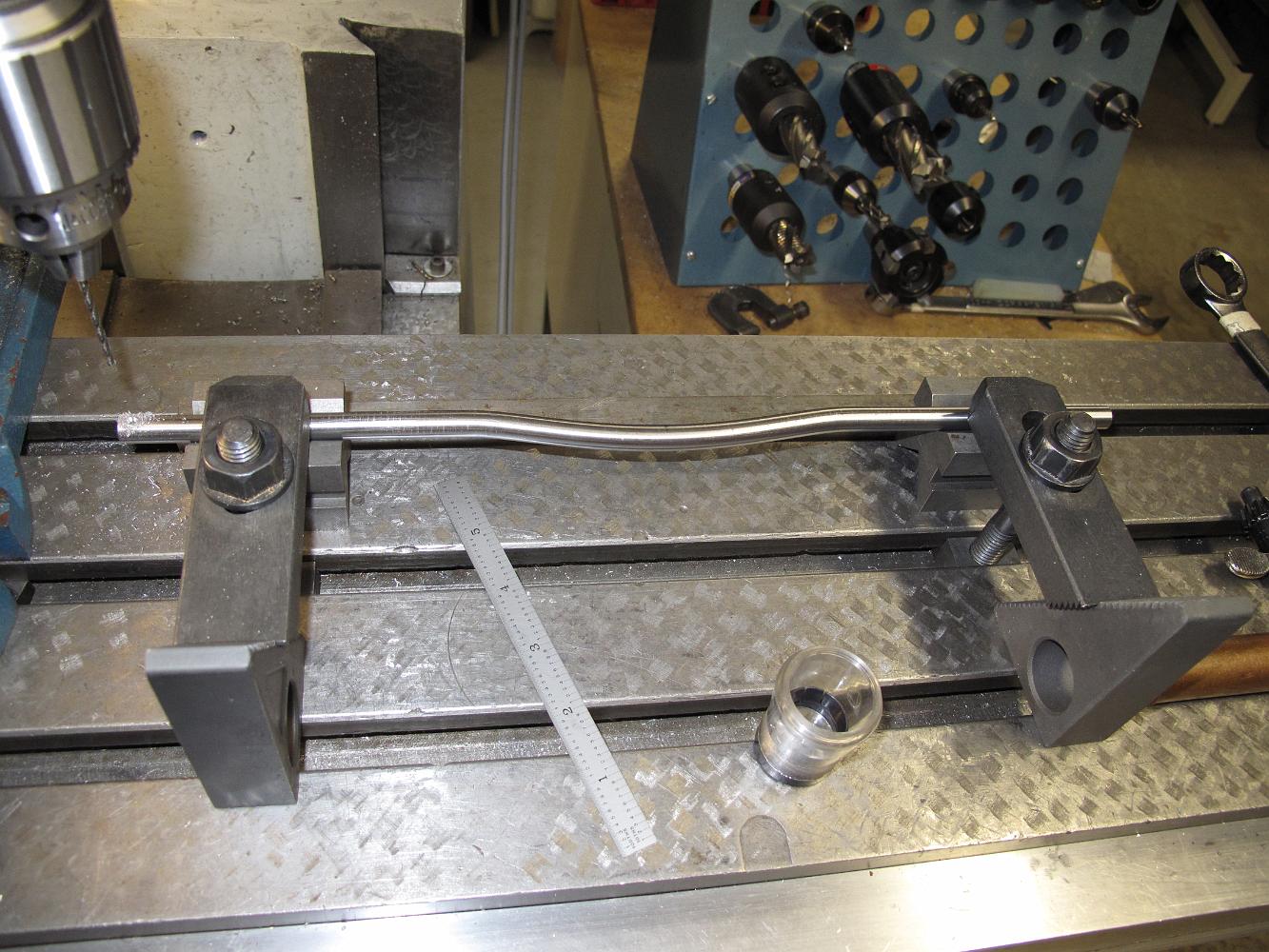

31-Jan-09 Drilling the roll pin holes for the tumbling shaft lifting arms. Reviewing the blueprint notes, we could not see how we could accurately match drill the arms to the shaft and guarentee the ends of the arms are in the same position on both sides of the locomotive.
