ExhibitPlus TrunionLinkSupport23July08 001

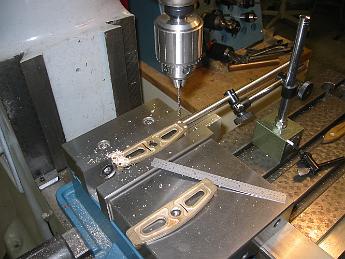

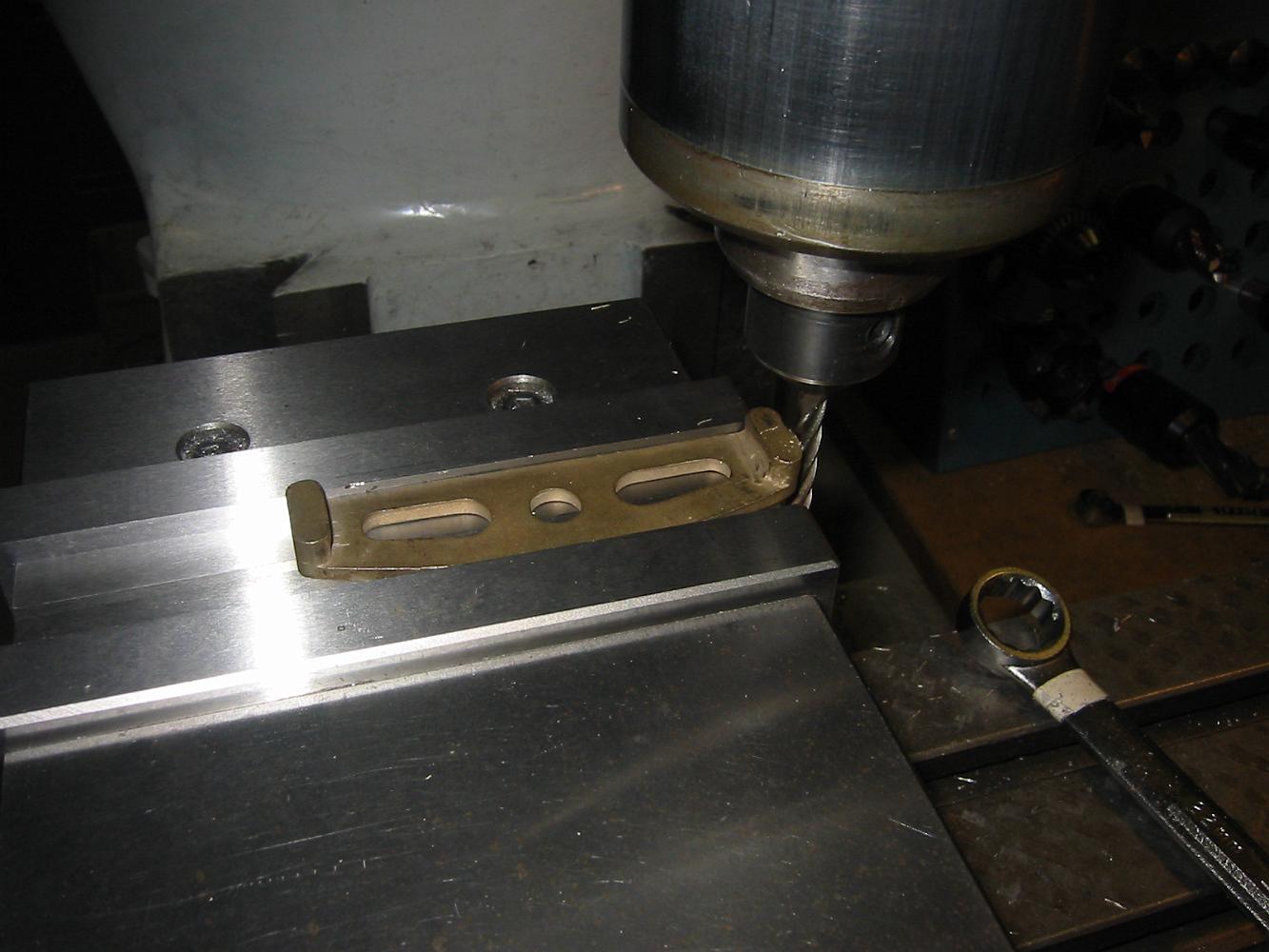

23-July-08 We start a new section! Yeah! Starting with the Trunion Link Supports, we trim the sprue end off and machine the ends to a uniform height. Like all castings, these thin brass castings are slightly warped, but a few hits with a soft hammer strightened them out before clamping in the vise.
