ExhibitPlus Rods14Jan09 005

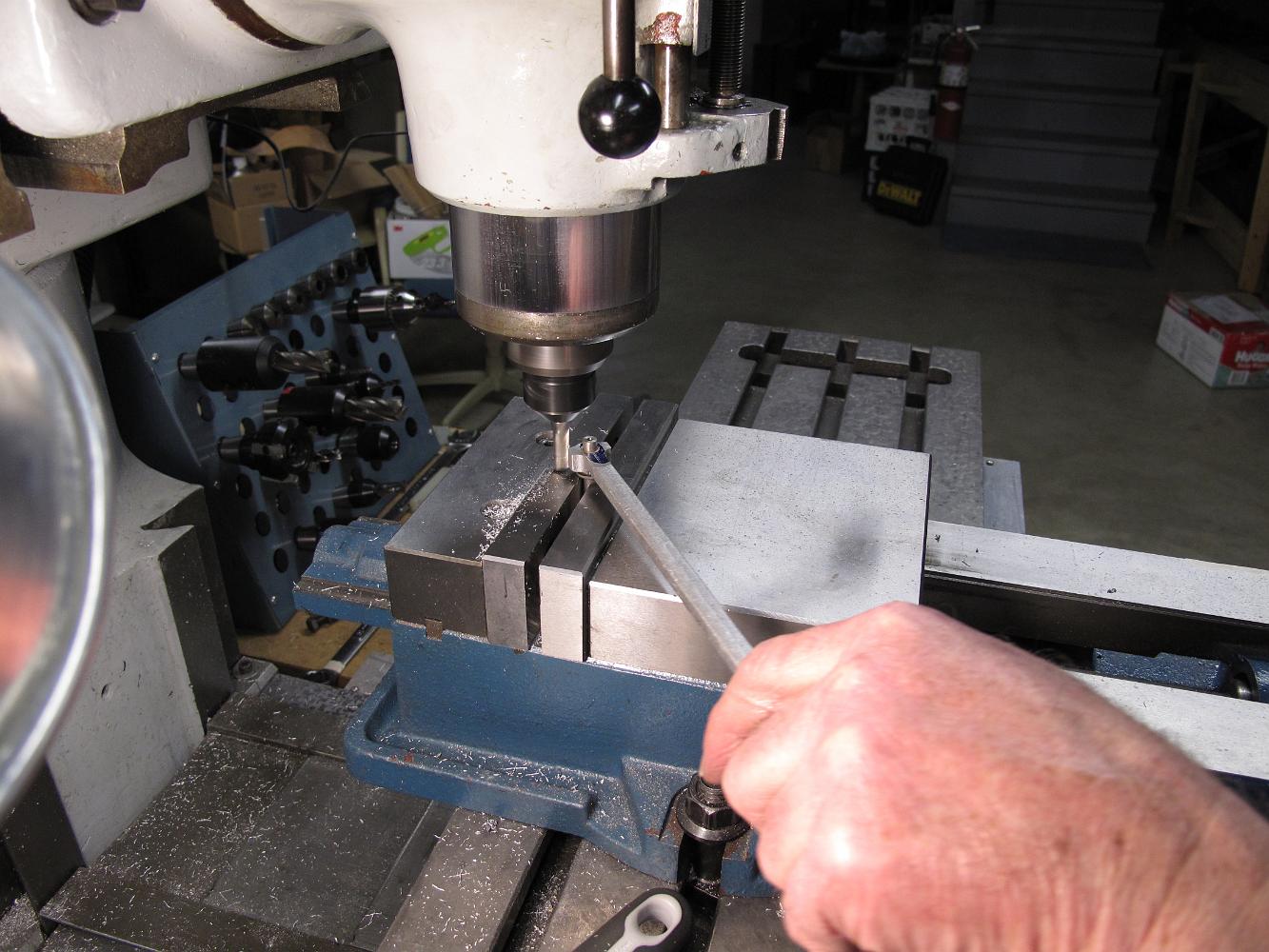

Foregoing the hassle of setting up a rotary table, we clamp a dowel pin in the vise, and making sure to take light cuts and CONVENTIONAL mill only, we rotate the eccentric rod by hand and cut away the redundant nub on each rod.
