ExhibitPlus Rods14Jan09 004

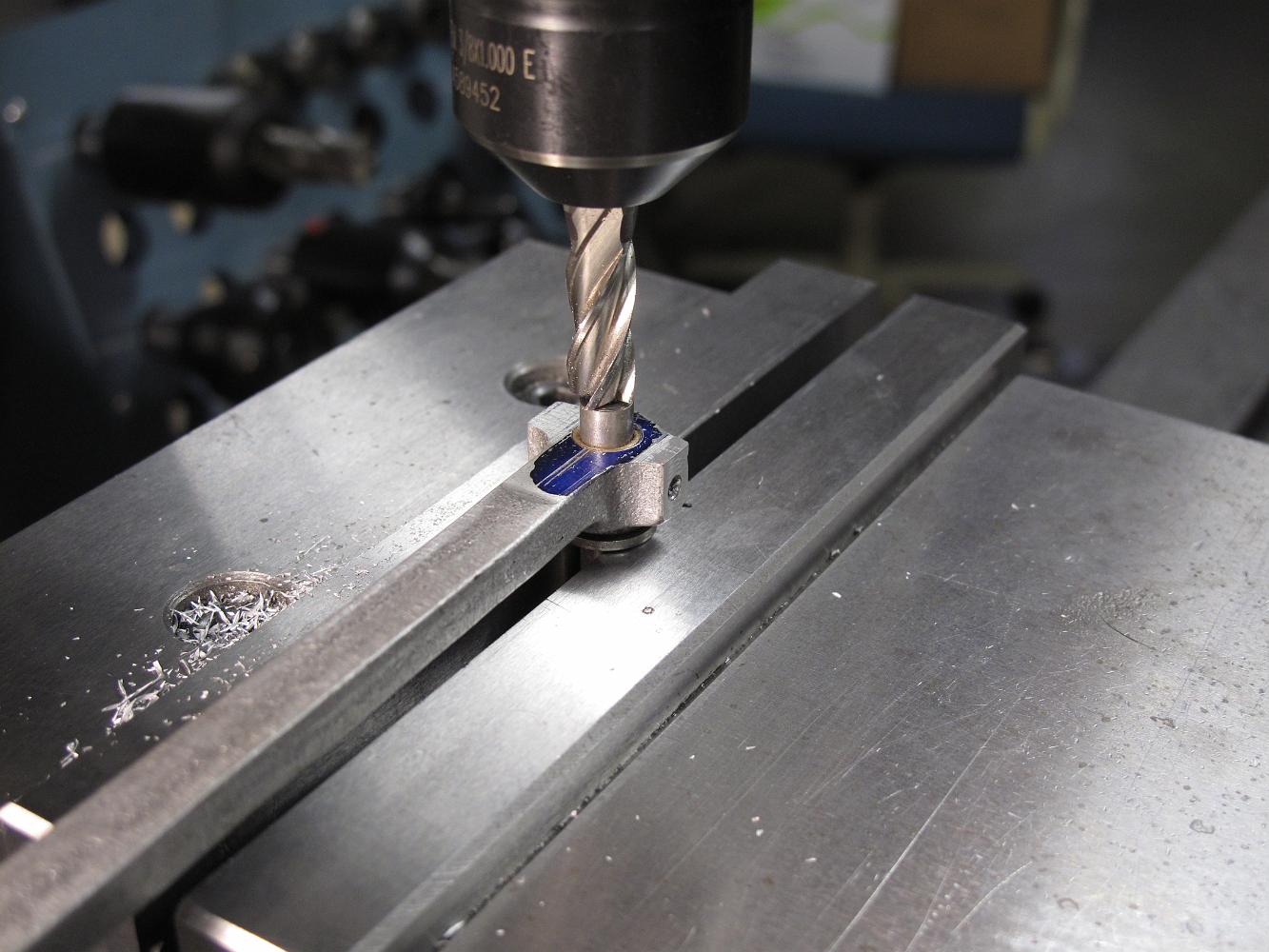

My eccentric rods were cast as both lefts and rights, and needed to have the 'oil fitting' nub machined off.
