ExhibitPlus Rods14Jan09 003

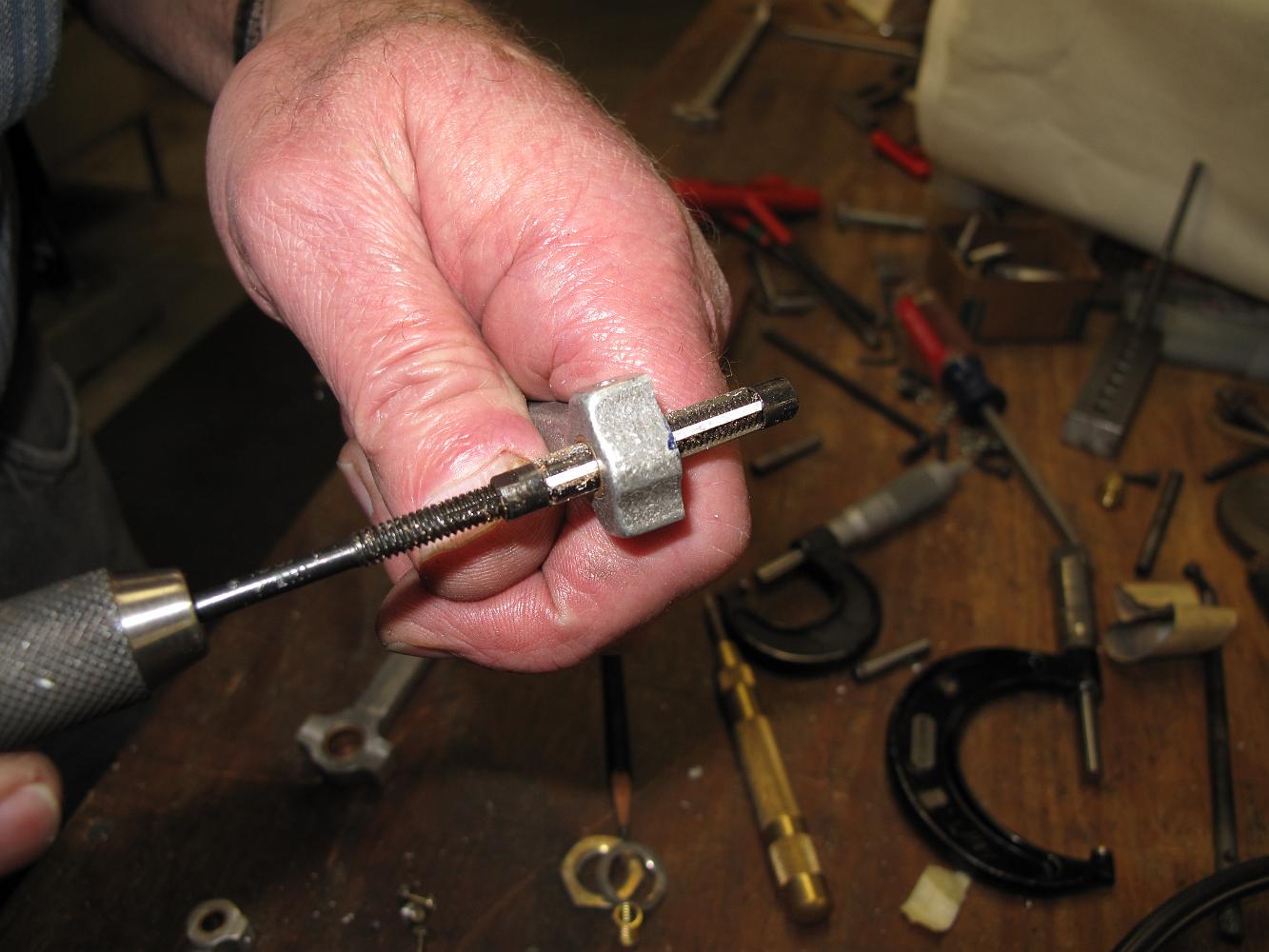

Using a small 1/4" adjustable reamer to finish the bushed hole to the correct size. The oil-inpregnated bronze bushings were .002 oversize (I only wanted .001 over) so after being pressed in were too small on the inner diameter.
