ExhibitPlus Rods14Jan09 001

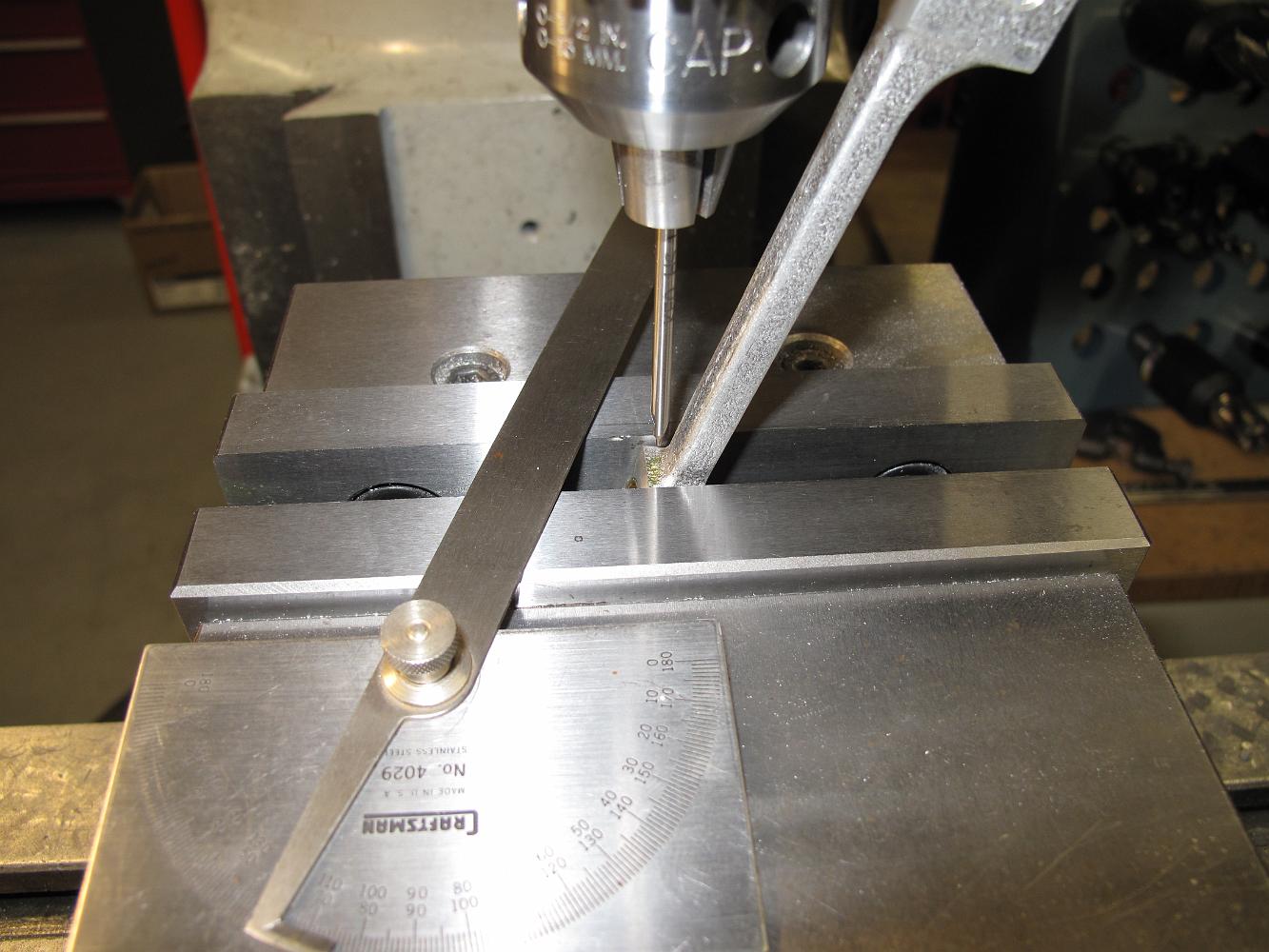

14-Jan-08 Time to drill some oil holes! Using a protractor and eye-ball-that-oughta-do alignment method to put the oil hole near the center of the shaft hole, we then use the wiggler to line up the hole location. Our drill bits were just barely long enough to drill the holes before the chuck body interferred with the side of the part.
