ExhibitPlus RadiusRod7Jan09 002

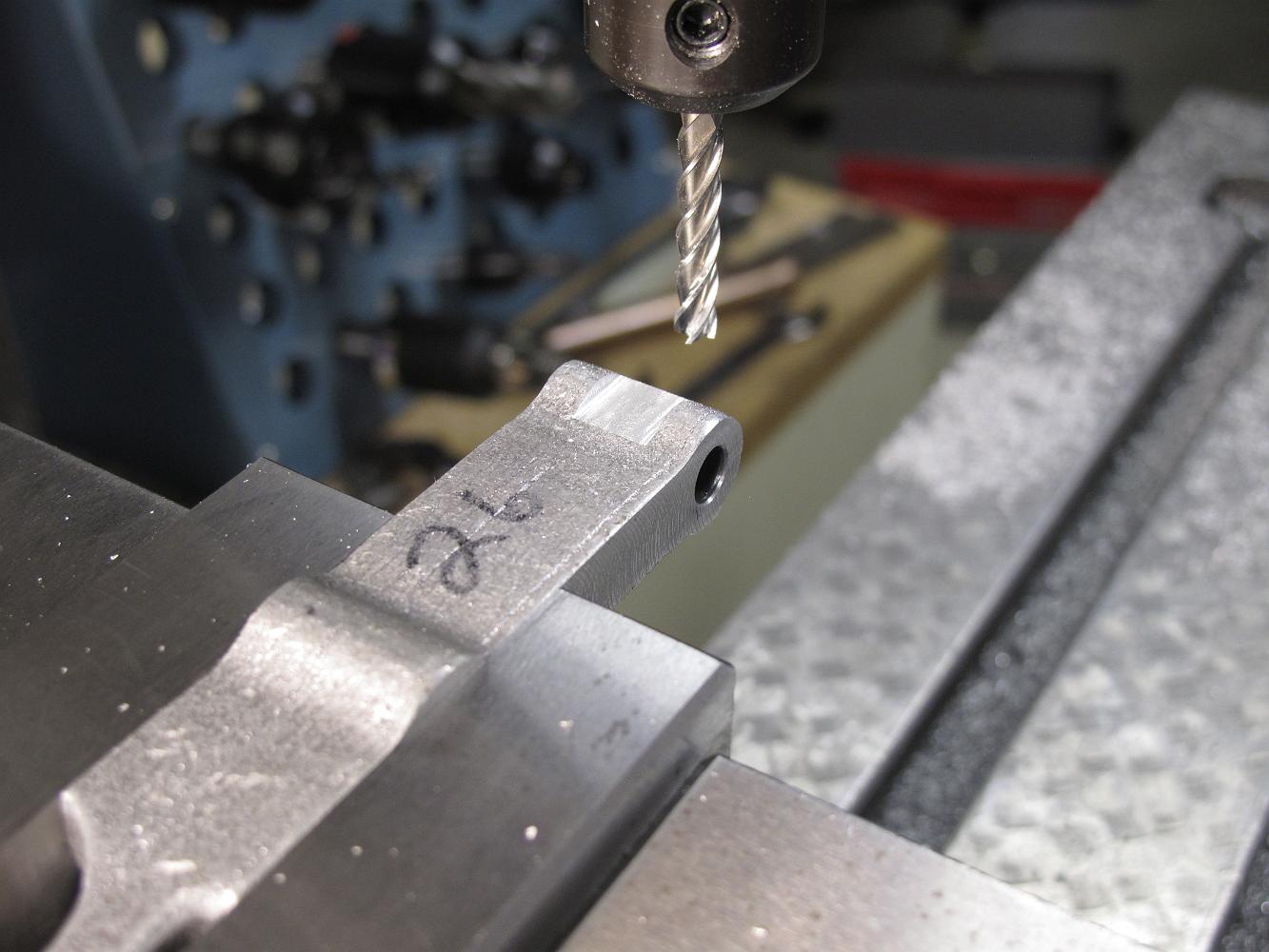

Because the 'ears' of the radius rod are so long and thin and will not leave us much material left to clamp with when we are done, We decide to cut the radius rod slot in two steps.
