ExhibitPlus SideRods2Apr08 006

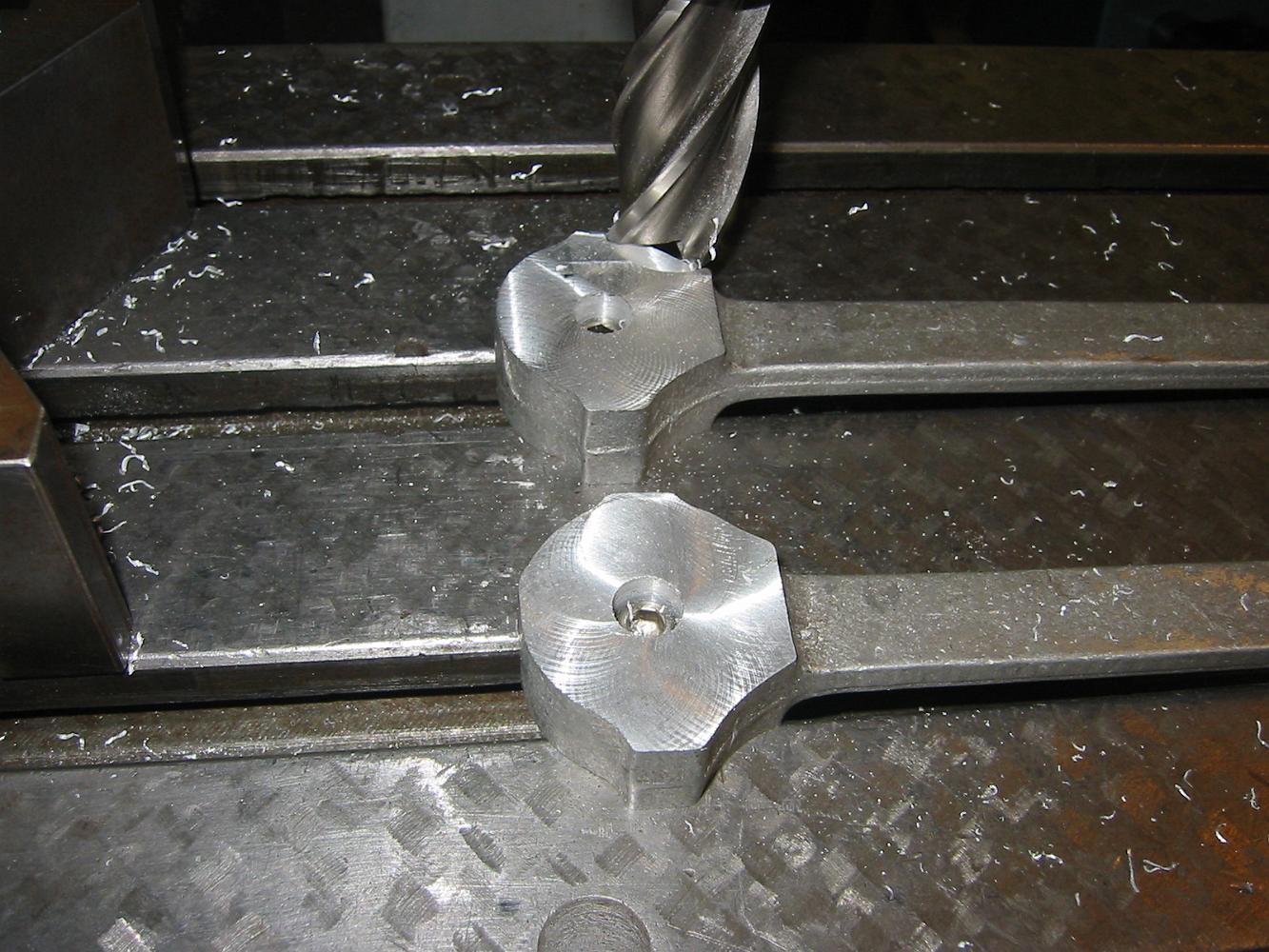

Milling the bearing ends to the finished size. This clamping solution turned out to be the best, the parts were solidly held to the table, without introducing any more twist or taper relative to the other finished side.
