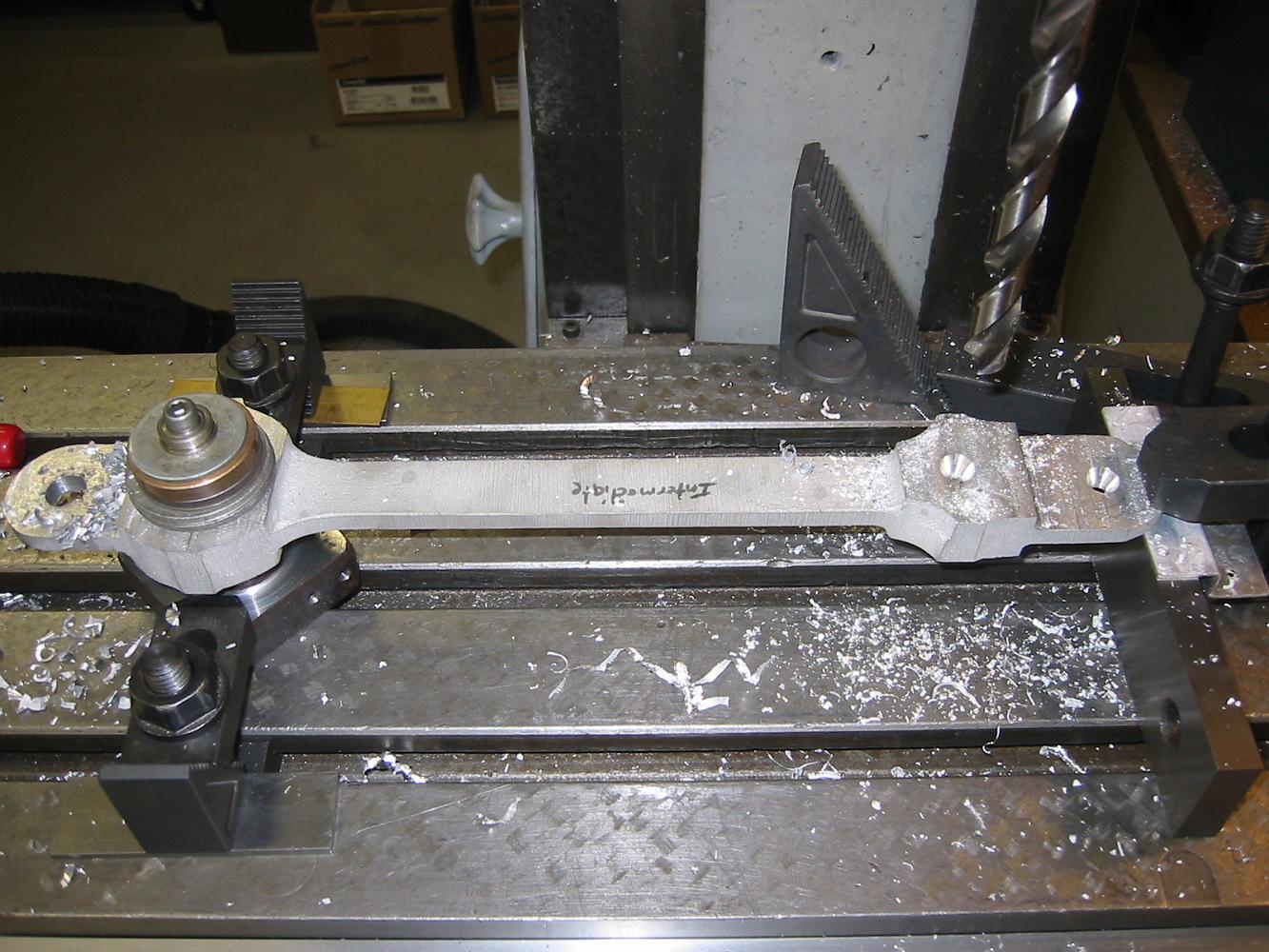

14-May-08 Drilling the holes in the intermediate rod. The left side is bolted down to the fixture, the right side is lightly clamped. We used a drill with 'blunt' flutes to keep the drill from digging into the soft aluminum. This did cause the unsupported rod end to flex under presure but did not cause a problem.
