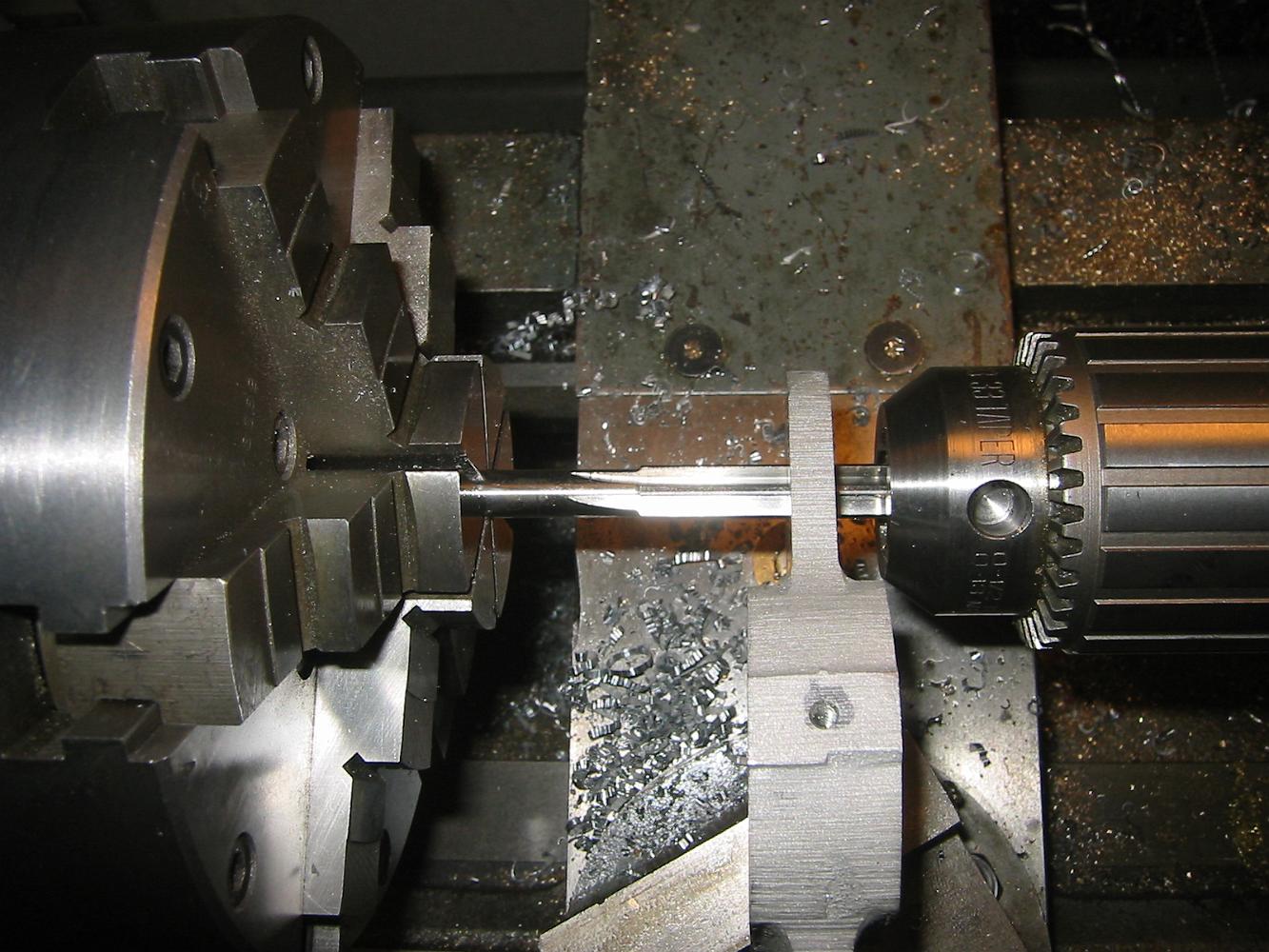

25-June-08 Using a reamer in the lathe (held by the chuck) to open and debur the bearing brass bushings in the intermediate rods. We used the nose of the drill chuck in the tailstock to keep the rod perpendicular to the reamer.
