RodsFinished25June08 001  [9 of 55] ExhibitPlus RodsFinished25June08 001

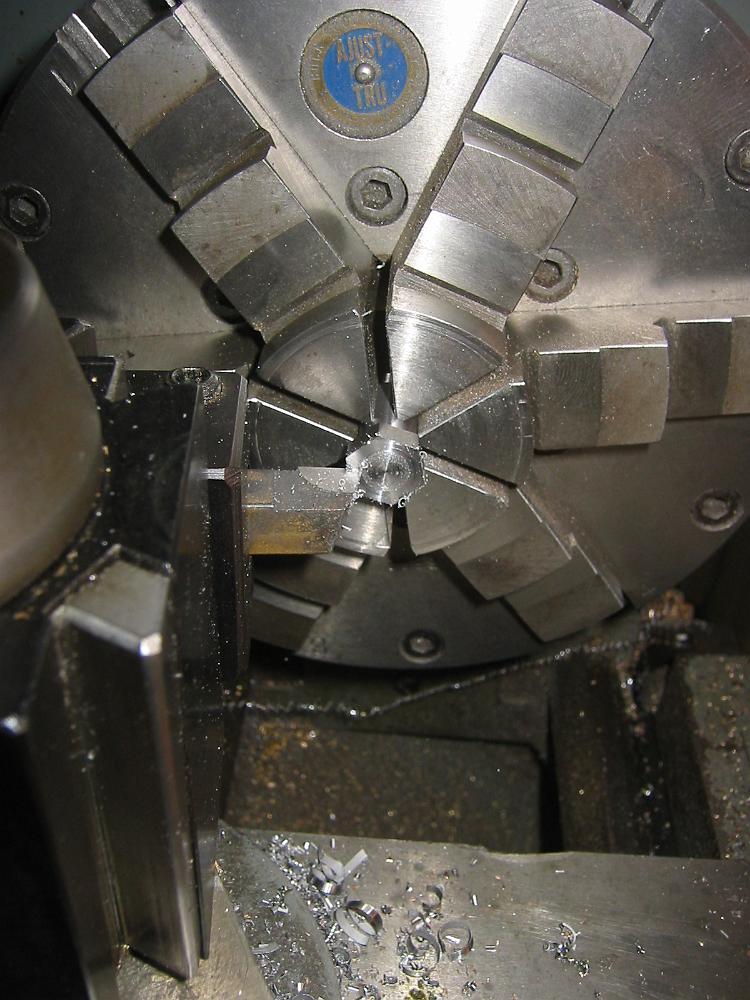

Finishing the knuckle pins. After all the turning operations, the pin is held in the chuck, faced to size. To put a slight crown on the bolt, Bill left the tool at the center, engaged the cross-slide feed out and as the tool pulled away from center, put slight pressure on the carriage handwheel towards headstock. The result is a domed knuckle pin. Very nice.
