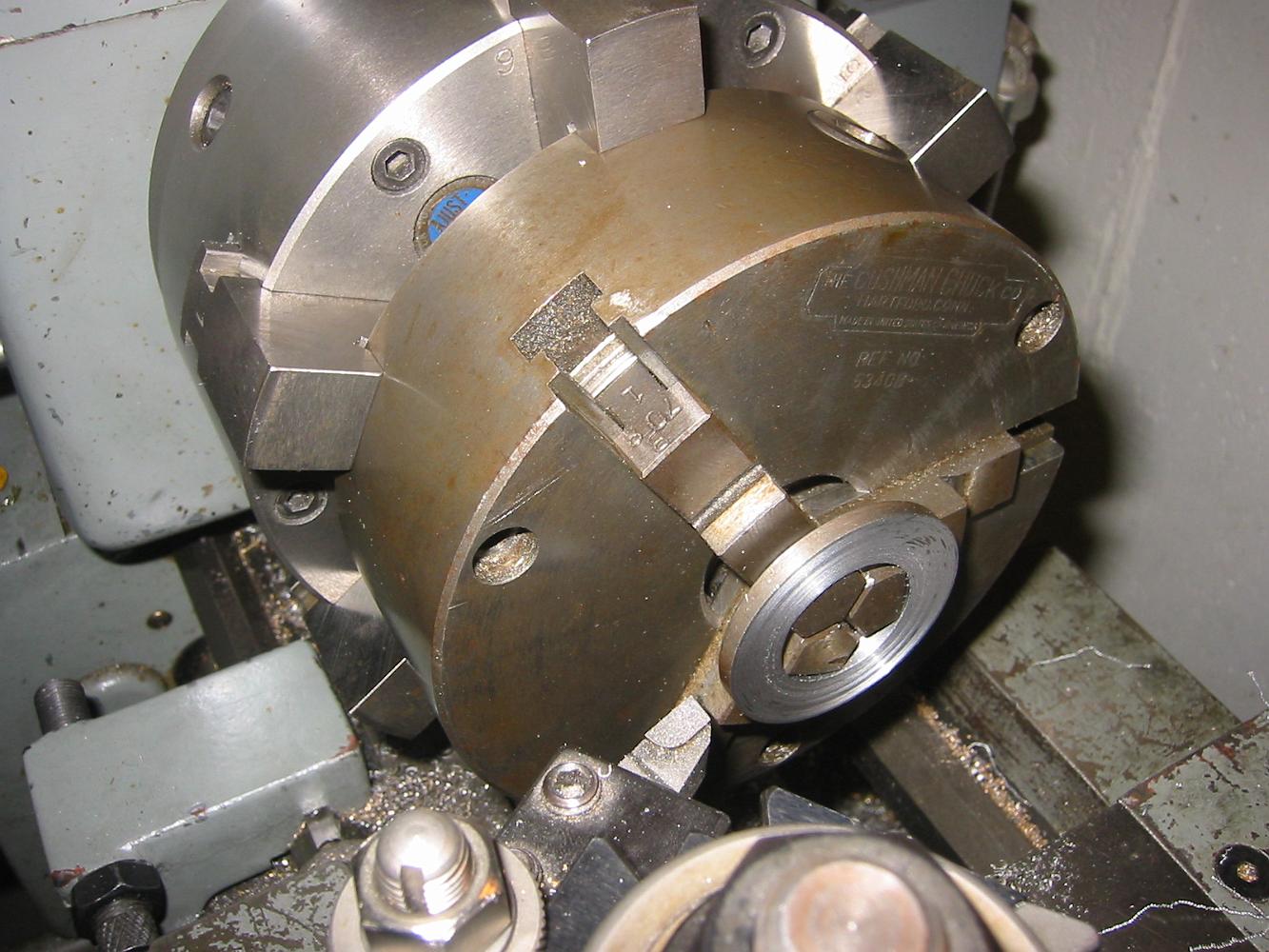

9-July-08 Here's a setup I've never done before: Chucking a chuck to hold the part. Bill did not want to make an expanding mandrel just for two parts, so we took this smaller chuck off a horizontal divider. It could hold the thin spacers just fine.
