ExhibitPlus MoreMainRodWork8May08 005

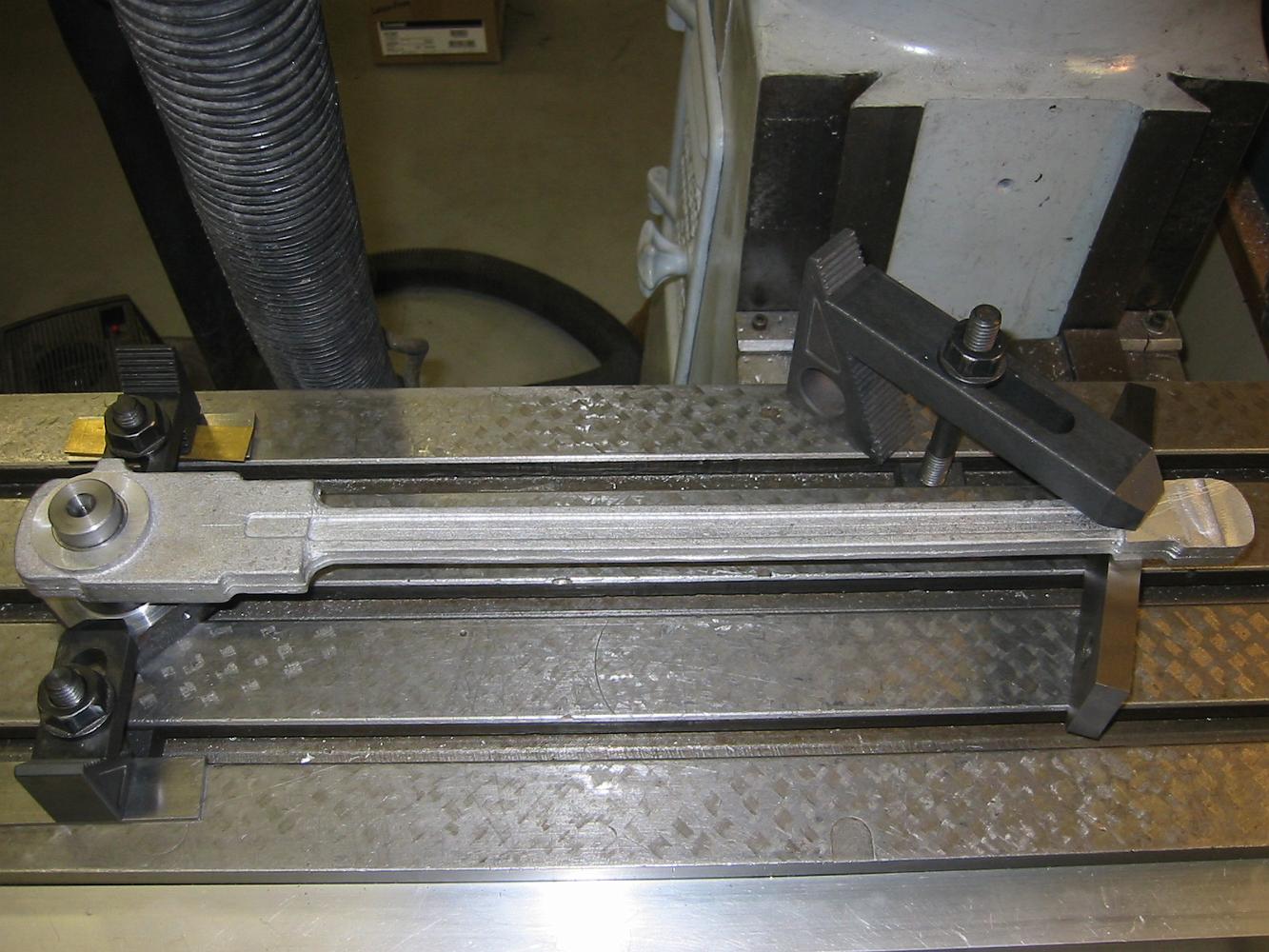

The set up to drill the crosshead end of the main rod. The fixture is the same height as the parallel at the other end.
