ExhibitPlus MoreMainRodWork8May08 004

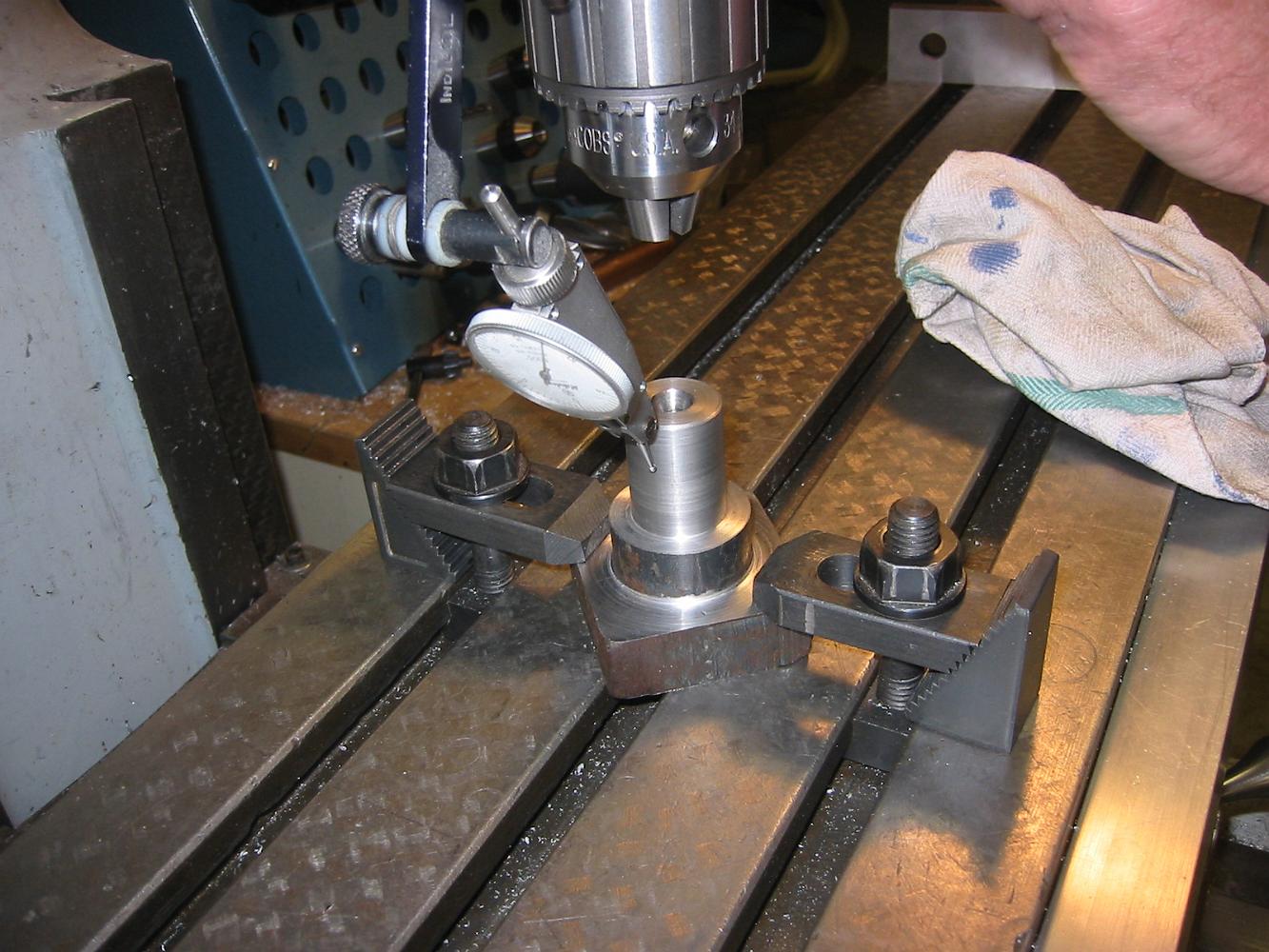

Having bolted the fixture to the table, we indicate all around to center and make sure it is perpendicular to the table. A minor adjustment to the bridgeport head was needed.
