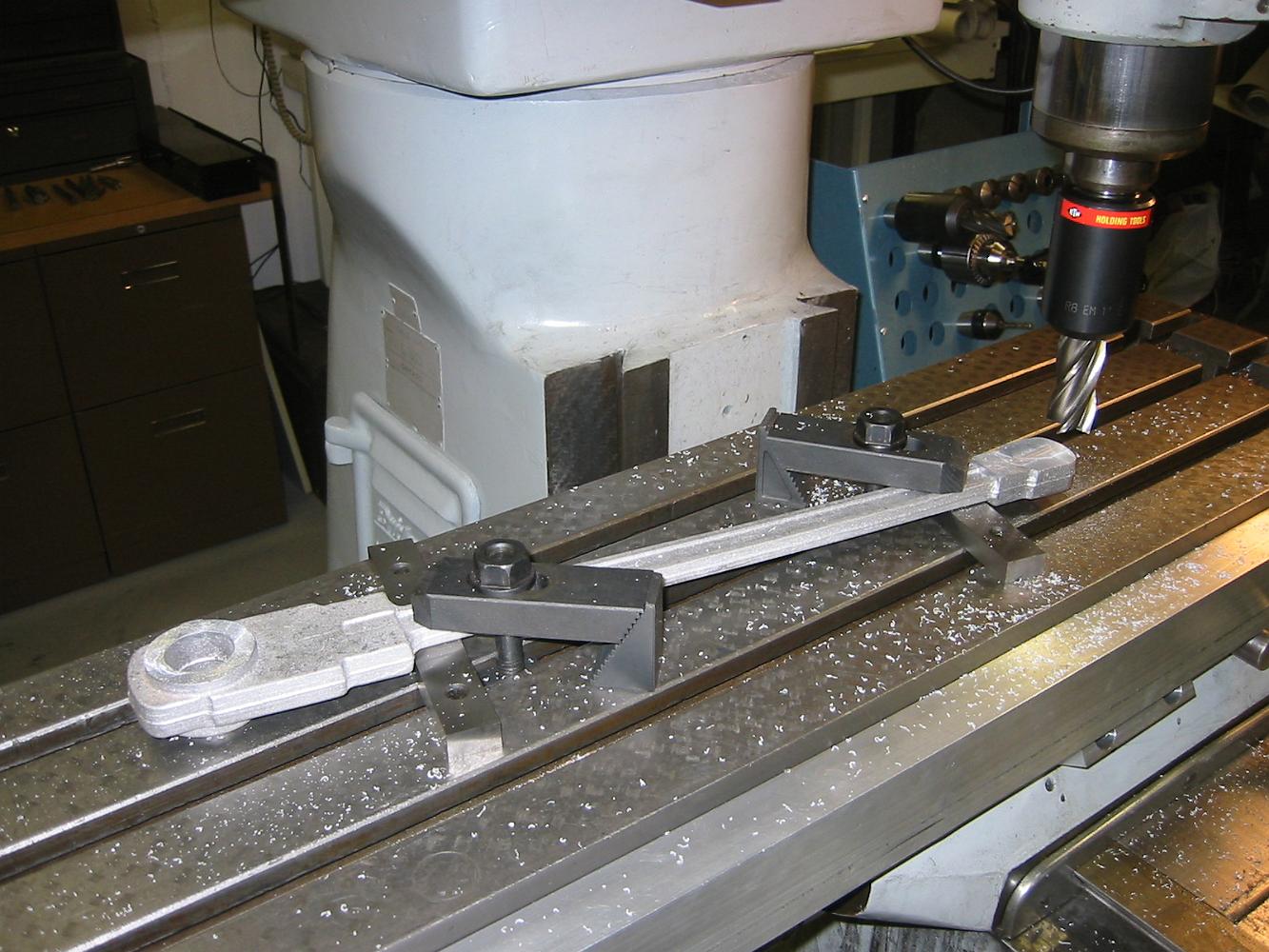

Since we could not clamp over the machined portion, which would have been ideal, we spent a lot of time fussing with the clamps to hold the part without moving the ends to be machined around. It worked, sorta. We ended up with tapered surfaces when we measured across both machined sides.
