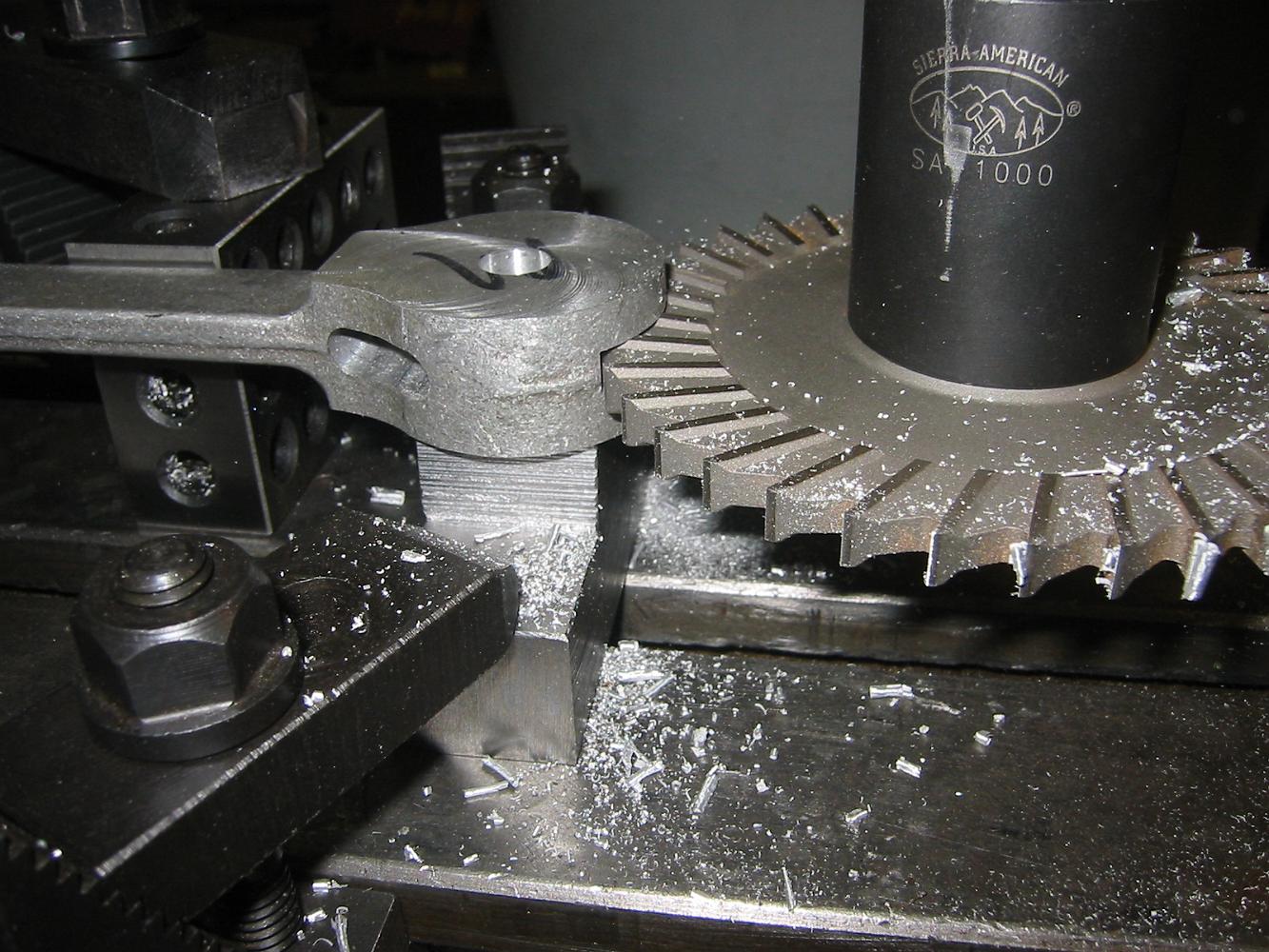

Slotting the end rods. The rod is bolted from the bottom to the t-shaped fixture under the clamps, a 1-2-3 block is placed against the side of the rod to futher secure it.
