ExhibitPlus EndRods11June08 001

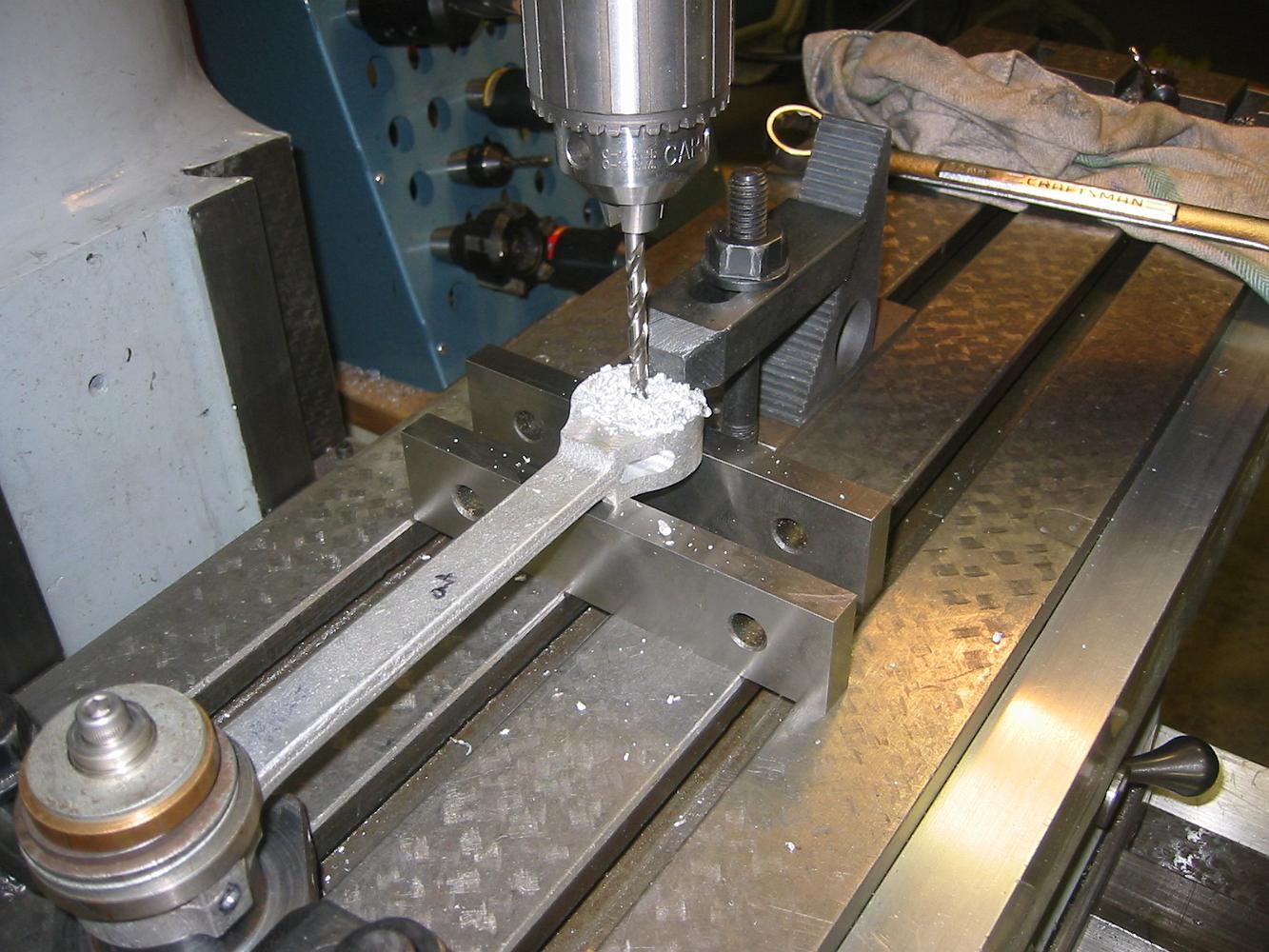

11-June-08 With the end rod securly held at the crankpin end, under the stack of washers on the tool holder, the other end is drilled so we can tap and bore the hole.
