ExhibitPlus MoreMikadoFrameWork3Mar05 002

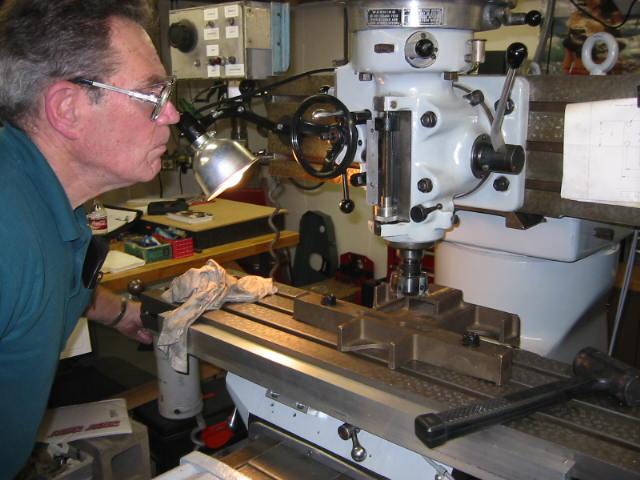

3-Mar-05 Putting a flat spot on the large brass tail cradle casting. The blueprint does not call for many machined surfaces, and we didn't have a way to hold the part squarely without being able to reference a machined edge, so we put one on the bottom.
