ExhibitPlus MikadoFramesCompleted12Jan05 002

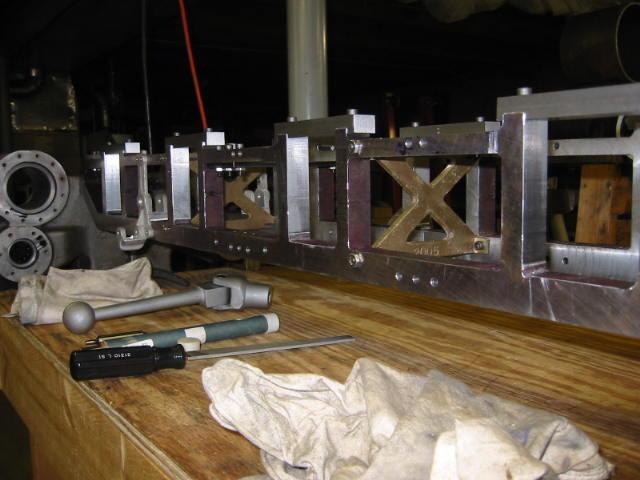

12-Jan-05 A small milestone: All the machining on the frames is complete! The pedestal binders have been made and bolted across the jaw openings, the frames bolted to the cylinders and the brass frame spreaders (gold 'X's) bolted on.
