ExhibitPlus BrakeHanger7Apr05 (1)

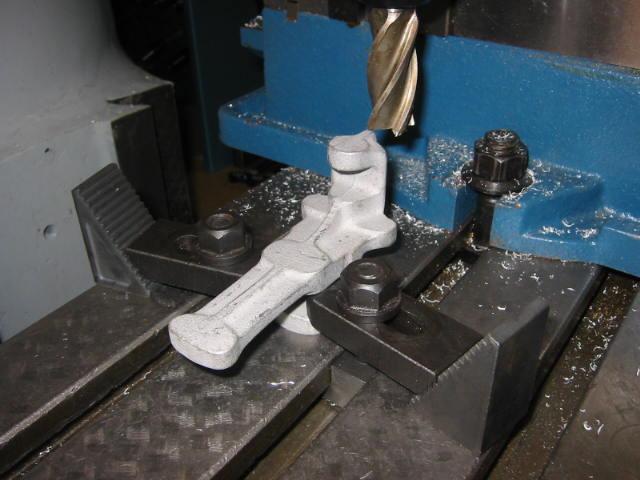

7-Apr-05 These brake hanger castings were hard to hold onto, with little reference surface to measure from. One of the first things to do is skim cut a portion of the casting to use as a reference.
